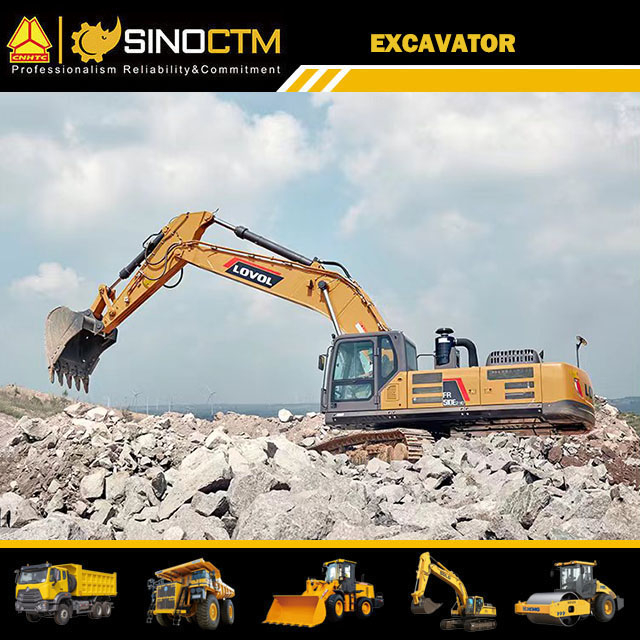

LOVOL FR510E2 Excavator
Bucket capacity: 2.5m³
Operating weight：49000kg
Engine Model: CUMMINS QSM11
Gross Power:298kW/2000rpm
| Quantity: | |
|---|---|
FR510E2 Excavator
LOVOL
SINOCTM is located in Ji′Nan city, Shandong province, SINOCTM aims to provide the project solutions with best cost performance to customers from China and abroad. Our main business are construction solutions consultancy, equipments supply, technical instruction, parts supply, service & training, logistic support and etc, providing the steward type service.
We cooperate with SINOTRUK, FOTON, SDLG, XCMG, Liugong, Shantui, Sany, Zoomlion, Hongda and other premium brands to provide tailored project solutions to your specific needs. We can help you to avoid long-time communication with different suppliers, which will save you time and cost. As to after market, with many years′ experience in the industry and long-term partnership with the suppliers, we do provide timely after market with lower cost and higher availability.
LOVOL FR510E2 EXCAVATOR SPECIFICATIONS | ||||
MACHINE PARAMETERS | ||||
Working weight | 49000kg | Bucket capacity | 2.5m3 | |
Arm digging force | 260kN | Bucket digging force | 310kN | |
ENGINE | ||||
Model | CUMMINS QSM11 | Type | Supercharged | |
Rated power | 298kW/2000rpm | Max.torque | 1898/1400N.m/rpm | |
WALKING/SWING SYSTEM | ||||
Max.grade ability | 35° | Max.walking speed | 4.6km/h | |
Max.traction force | 382kN | Rotary Speed | 7.8r/min | |
Ground Pressure | 83kPa | -- | -- | |
Oil Capacity | ||||
Fuel Tank | 670L | Hydraulic Tank | 370L | |
Engine Oil | 38L | -- | ||
OVERALL DIMENSIONS | ||||
Shipping Length | 12253mm | Shipping Ground Length | 7398mm | |
Shipping Height | 3900mm | Transport Width | 3340mm | |
Cab Height | 3900mm | Counterweight Clearance of Bucket | 1237mm | |
Min. Ground Clearance | 550mm | Tail Turning Radius | 3800mm | |
Wheel Tread | 4370mm | Track Length | 5357mm | |
Track Gauge | 2740mm | Track Shoe Width | 600mm | |
Hood Height | 2348mm | Rotary Platform Width | 3340mm | |
WORKING RANGES | ||||
Max. Digging Height | 10620mm | Max. Dumping Height | 7443mm | |
Max. Digging Depth | 7282mm | Max. Vertical Digging Depth | 6220mm | |
Max. Digging Radius | 11520mm | Max. Ground Digging Radius | 11306mm | |
Min. Turning Radius | 4962mm | |||
Packing | Nude Pack.The packing of the commodity shall be in accordance with the export standard packing of the manufacturer,be suitable for long distance transportation of ocean and inland. The Seller shall be take measures against moisture,shocks and rust according to the special needs of the commodity. | |||
The manufacturer reserves the right of technical alteration /change for better improvement without prior notice | ||||
Our excavator is suitable for earth and stone construction projects such as municipal construction, highway bridges, housing construction, road engineering, farmland water conservancy construction, port construction and so on.
Our has features of good flexibility and maneuverability, low fuel consumption, high construction efficiency, large digging force, comfortable driving environment and wide range of application.
Model Characteristics:
1. Engine
Engine that provides powerful performance and low fuel consumption. The overall system is optimised to provide a comprehensive performance upgrade.
2. Latest fuel filter
The latest fuel filer improves filtration and ensures oil inlet quality, thus improving the reliability of the machine under harsh operating conditions.
3. Hydraulic system
Hydraulic components are configured to match capabilities for excellent performance.
4. Structure
Finite element analysis is used in the structural design to strengthen key components so that they can withstand greater stress. This ensures that the machine stays durable under different harsh operating conditions.
5. Optional match
Optional tools include a breaker, a cold temperature activation device, and falling object protection, all to increase the capabilities of the machine.
