800-1000T/H Limestone/Dolomite Aggregates Production Line

Views: 0     Author: Site Editor     Publish Time: 2022-06-15      Origin: Site

Inquire

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
800-1000T/H Limestone/Dolomite Aggregates Production Line

800-1000T/H Limestone/Dolomite Aggregates Production Line

Features: The whole production line with simple process, small floor space. The equipments have large crushing ratio, high production efficiency, and low operating costs. The finished particles have good shape with even distribution, which can meet various requirements of aggregates used in the field of construction industry.

Crushing Process

This system is applied for the limestone (dolomite) aggregates production with the production capacity of 800-1000t/h. the process flow is vibrating feeder – jaw crusher – impact crusher – vibrating screen – sand washer.

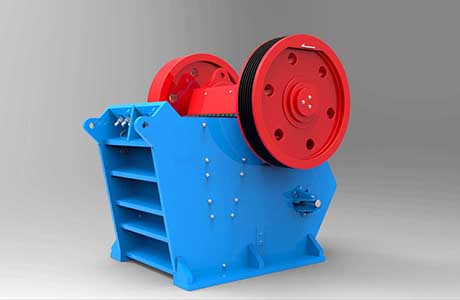

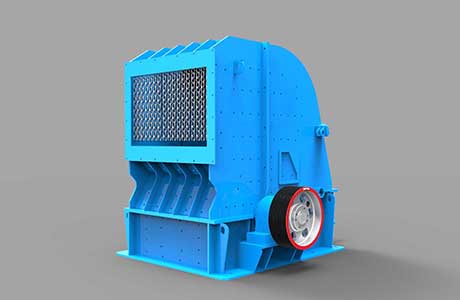

                 颚破机C800-1000                              反击式破碎机800-1000                                 Jaw crusher                                                                                                                                 Impact Crusher

制砂机1000                              振动给料机ZSD100

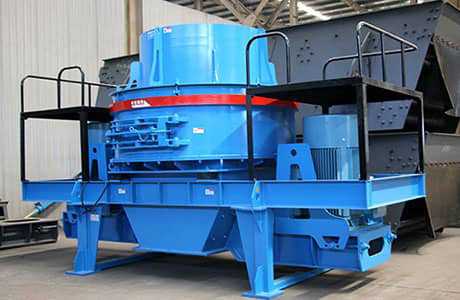

Sand Making Machine                                                                                                                  Grizzly Feeder

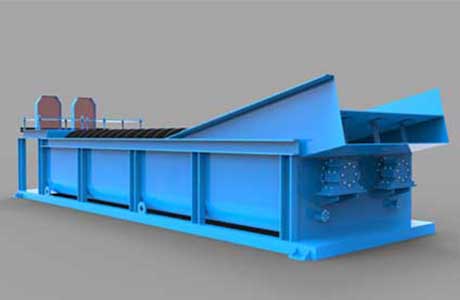

振动筛 1                             洗砂机

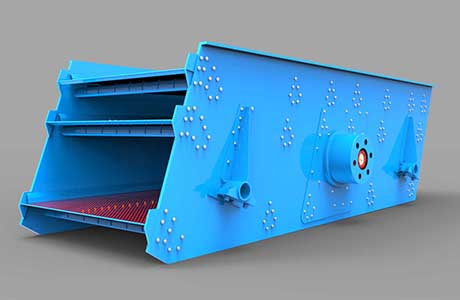

Vibrating Screen                                                                                                                         Sand Washer

800t/h - Limestone/Dolomite Production Configuration Table

No.

Equipment

Model

Unit

Quantity

Power(kw)

Total Power(kw)

Output(t/h)

Weight(kg)

Remark

G1

Grizzly Feeder

ZSW600x180

pc

1

45

45

400-1000

13500


P1

Jaw Crusher

C1615

pc

1

220

220

470-1150



P2

Impact Crusher

PFQ1520

pc

2

2X250

1000

-500

42000


P3

Impact Crusher

PFQ1320

pc

1

2X160

320

-350

32700


S1

Vibrating Screen

3YKR3073

pc

2

2X30

120

150-900

22500


XL1

Sand Washer

XL914

pc

2

15

30

-100

6370

wet method

C1

Iron Separator


pc

1






G2

Vibrating Feeder

ZG200

pc

2

2×0.75

3

-200



P4

Sand Making Machine

PLS-1200

pc

2

500-630

1000-1260

300-715

19690


S2

Vibrating Screen

2YK2475

pc

2

55

110

150-900

13924


XL2

Sand Washer

2XL914

pc

1

2X15

30

-200

11300

wet method

C2

Iron Separator


pc

1






1000t/h - Limestone/Dolomite Production Configuration Table

No.

Equipment

Model

Unit

Quantity

Power(kw)

Total Power(kw)

Output(t/h)

Weight(kg)

Remark

G1

Grizzly Feeder

ZSW600x210

pc

1

45

45

550-1250

14791


P1

Jaw Crusher

C1815

pc

1

355

355

630-1300

106000


P2

Impact Crusher

PFQ1520

pc

3

2X250

1500

-500

42000


S1

Vibrating Screen

3YKR2460

pc

4

45

180

120-880

11046


XL1

Sand Washer

XL1118

pc

2

22

44

-175

12703

wet method

C1

Iron Separator


pc

1






G2

Vibrating Feeder

ZG200

pc

2

2×0.75

3

-200



P3

Sand Making Machine

PLS-1200

pc

2

500-630

1000-1260

300-715

19690


S2

Vibrating Screen

2YK3073

pc

2

55

110

150-900

15476


XL2

Sand Washer

2XL1118

pc

1

2X22

44

-350


wet method

C2

Iron Separator


pc

1








Notes: the equipment in the sheet is used for reference, the final equipment configuration should be selected due to material particle size, product particle size and grade, system capacity, working conditions and topographical features.

大华破碎机组合 5

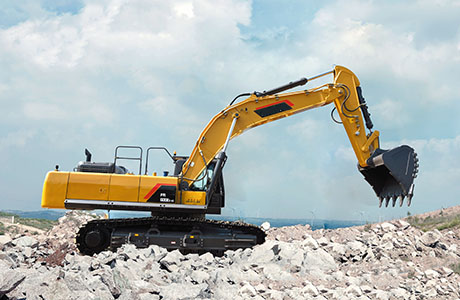

装载机                              挖掘机

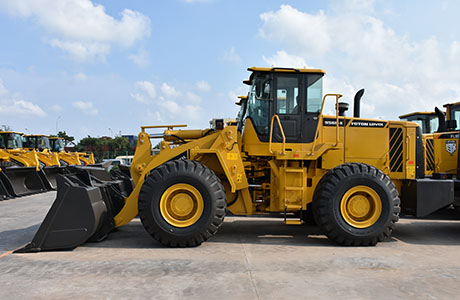

Wheel Loader                                                                                                                                       Crawler Excavator

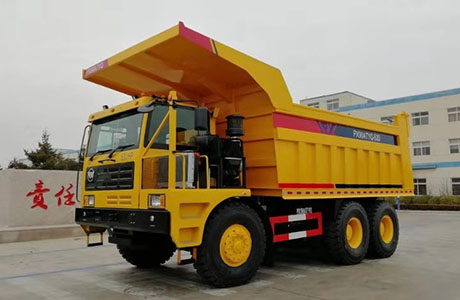

矿卡                              潜孔钻和空压机组合 2

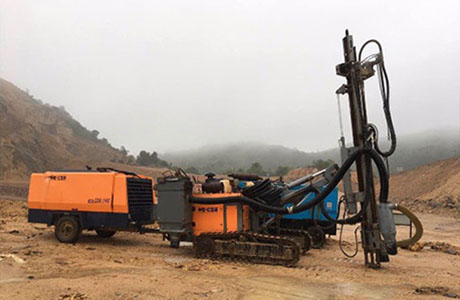

Mining Dump Truck                                                                                                                      Automatic Crawler Mounted DTH Drilling Rig

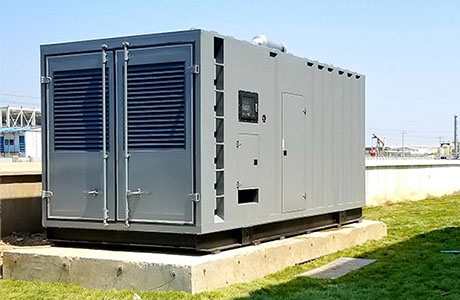

发电机组                              随车吊

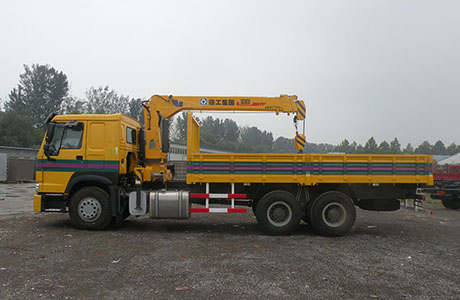

Diesel Generator Set                                                                                                                    Boom Truck

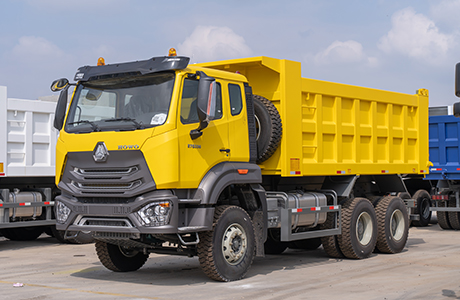

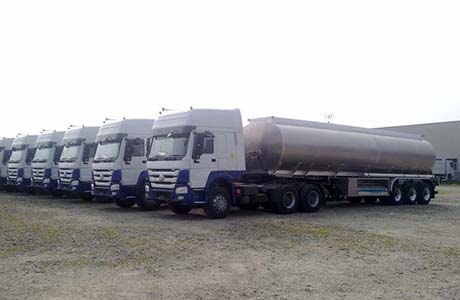

自卸车 1                              油罐半挂

Dump Truck                                                                                                                                   Oil Tank Semi-Trailer

新大华破碎机组合 1
