Features: The whole production line with simple process, small floor space. The equipments have large crushing ratio, high production efficiency, and low operating costs. The finished particles have good shape with even distribution, which can meet various requirements of aggregates used in the field of construction industry.
Crushing Process
This system is applied for the limestone (dolomite) aggregates production with the production capacity of 300-400t/h. the process flow is vibrating feeder – jaw crusher – impact crusher – vibrating screen – sand washer.

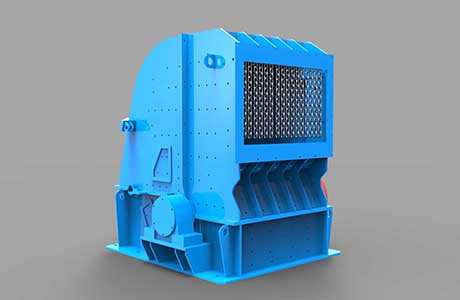

Jaw Crusher Impact Crusher

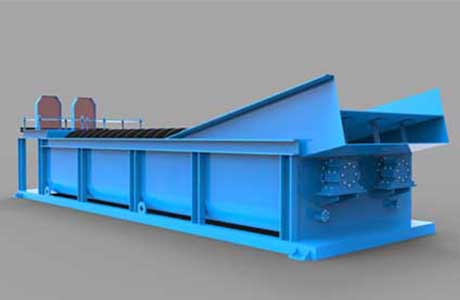

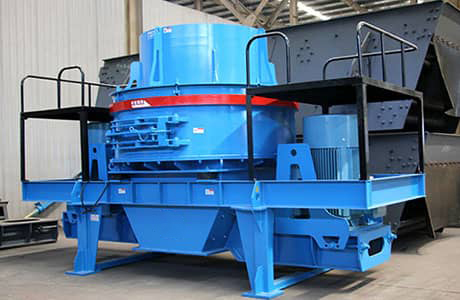

Sand Making Machine Sand Washer

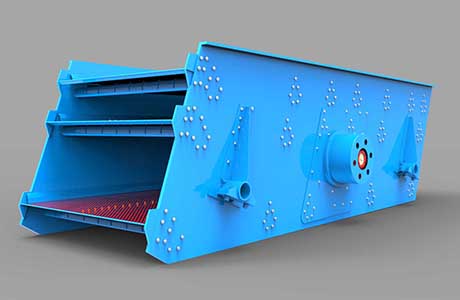

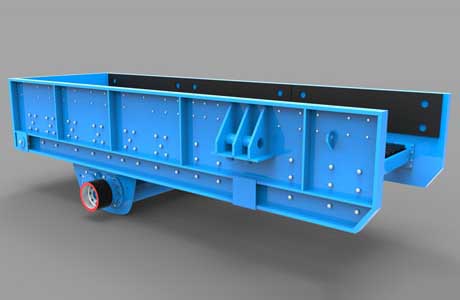

Grizzly Feeder Vibrating Screen
300t/h - Limestone/Dolomite Production Configuration Table
No. | Equipment | Model | Unit | Quantity | Power(kw) | Total Power(kw) | Output(t/h) | Weight(kg) | Remark |
G1 | Grizzly Feeder | ZSW600×130 | pc | 1 | 30 | 30 | 220-560 | 8270 | |
P1 | Jaw Crusher | C1210 | pc | 1 | 132 | 132 | 270-810 | 33200 | |
P2 | Impact Crusher | PFQ1313 | pc | 2 | 200 | 400 | 130-230 | 21120 | |
S1 | Vibrating Screen | 3YKR2773 | pc | 1 | 55 | 55 | 150-1100 | 18031 | |
XL1 | Sand Washer | XL914 | pc | 1 | 15 | 15 | -100 | 6370 | wet method |
C1 | Iron Separator | pc | 1 | ||||||
G2 | Vibrating Feeder | ZG-150 | pc | 1 | 2×0.75 | 1.5 | -150 | ||
P3 | Sand Making Machine | PLS-1000 | pc | 1 | 320-500 | 320-500 | 200-585 | 16500 | |
S2 | Vibrating Screen | 2YK2460 | pc | 1 | 37 | 37 | 120-880 | 9076 | |
XL2 | Sand Washer | XL1118 | pc | 1 | 22 | 22 | -175 | 12703 | wet method |
C2 | Iron Separator | pc | 1 |
400t/h - Limestone/Dolomite Production Configuration Table
No. | Equipment | Model | Unit | Quantity | Power(kw) | Total Power(kw) | Output(t/h) | Weight(kg) | Remark |
G1 | Grizzly Feeder | ZSW600 x 130 | pc | 1 | 30 | 30 | 220-560 | 8270 | |
P1 | Jaw Crusher | C1210 | pc | 1 | 132 | 132 | 270-810 | 33200 | |
P2 | Impact Crusher | PFQ1315 | pc | 2 | 280 | 560 | 160-300 | 23570 | |
S1 | Vibrating Screen | 3YKR2160 | pc | 2 | 45 | 90 | 115-820 | 10652 | |
XL1 | Sand Washer | XL914 | pc | 1 | 15 | 15 | -100 | 6370 | wet method |
C1 | Iron Separator | pc | 1 | ||||||
G2 | Vibrating Screen | ZG200 | pc | 1 | 2×0.75 | 1.5 | -200 | ||
P3 | Sand Making Machine | PLS-1200 | pc | 1 | 500-630 | 500-630 | 300-715 | 19690 | |
S2 | Vibrating Screen | 2YK2475 | pc | 1 | 45 | 45 | 180-900 | 13924 | |
XL2 | Sand Washer | XL1118 | pc | 1 | 22 | 22 | -175 | 12703 | wet method |
C2 | Iron Separator | pc | 1 |
Notes: the equipment in the sheet is used for reference, the final equipment configuration should be selected due to material particle size, product particle size and grade, system capacity, working conditions and topographical features.
