500-600T/H Limestone/Dolomite Aggregates Production Line

Views: 0     Author: Site Editor     Publish Time: 2022-06-15      Origin: Site

Inquire

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
500-600T/H Limestone/Dolomite Aggregates Production Line

500-600T/H Limestone/Dolomite Aggregates Production Line

This system is applied for the limestone (dolomite) aggregates production with the production capacity of 500-600t/h. the process flow is vibrating feeder – jaw crusher – impact crusher – vibrating screen – sand washer.

颚破机                              反击式破碎机

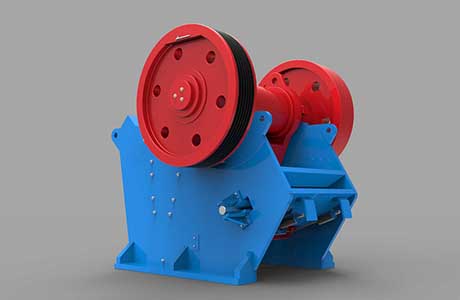

Jaw crusher                                                                                                                                  Impact Crusher

制砂机1000                              振动给料机ZSD100

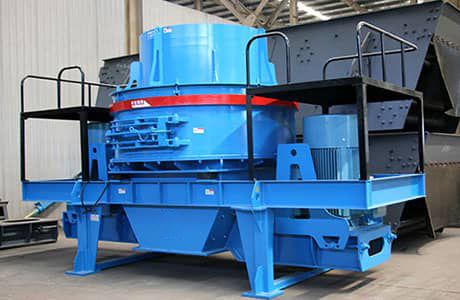

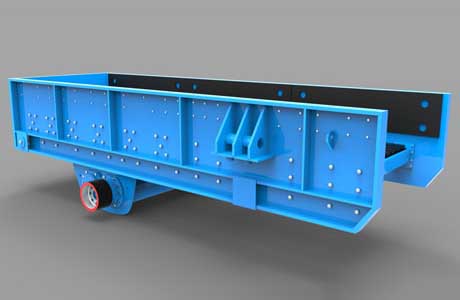

Sand Making Machine                                                                                                                  Grizzly Feeder

振动筛 1                              洗砂机

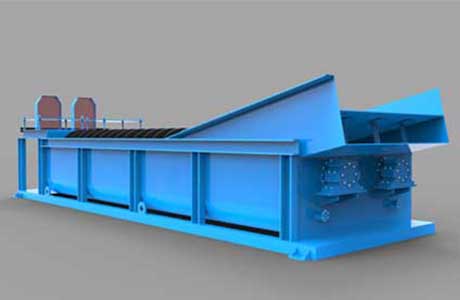

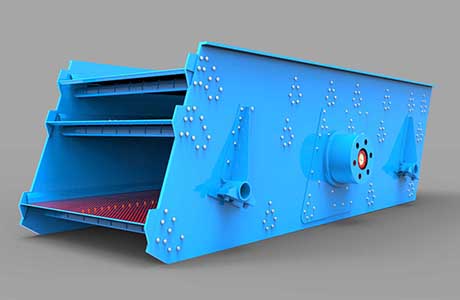

Vibrating Screen                                                                                                                           Sand Washer


500t/h - Limestone/Dolomite Production Configuration Table

No.

Equipment

Model

Unit

Quantity

Power(kw)

Total Power(kw)

Output(t/h)

Weight(kg)

Remark

G1

Grizzly Feeder

ZSW600x150

pc

1

37

37

260-620

11434


P1

Jaw Crusher

C1412

pc

1

185

185

390-950

55820


P2

Impact Crusher

PFQ1320

pc

2

2X160

640

-350

32700


S1

Vibrating Feeder

3YKR2460

pc

2

45

90

120-880

11046


XL1

Sand Washer

XL762

pc

2

15

30

-75

5225

wet method

C1

Iron Separator


pc

1






G2

Vibrating Feeder

ZG-200

pc

1

2X0.75

1.5

-200



P3

Sand Making Machine

PLS-1200

pc

1

500-630

500-630

300-715

19690


S2

Vibrating Screen

2YK3073

pc

1

55

55

150-900

15476


XL2

Sand Washer

2XL914

pc

1

2X15

30

-200

11300

wet method

C2

Iron Separator


pc

1






600t/h - Limestone/Dolomite Production Configuration Table

No.

Equipment

Model

Unit

Quantity

Power(kw)

Total Power(kw)

Output(t/h)

Weight(kg)

Remark

G1

Grizzly Feeder

ZSW600X180

pc

1

45

45

400-1000

13500


P1

Jaw Crusher

C1412

pc

1

185

185

390-950

55820


P2

Impact Crusher

PFQ1320

pc

2

2X160

640

-350

32700


P3

Impact Crusher

PFQ1315

pc

1

250

250

-280

23570


S1

Vibrating Screen

3YKR2475

pc

2

55

110

150-900

17555


XL1

Sand Washer

XL914

pc

2

15

30

-100

6307

wet method

C1

Iron Separator


pc

1






G2

Vibrating Feeder

ZG-150

pc

2

2×0.75

3

-150



P4

Sand Making Machine

PLS-1000

pc

2

320-500

640-1000

200-585

16500


S2

Vibrating Screen

2YK2460

pc

2

37

74

120-880

9076


XL2

Sand Washer

2XL914

pc

1

2X15

30

-200

11300

wet method

C2

Iron Separator


pc

1






Notes: the equipment in the sheet is used for reference, the final equipment configuration should be selected due to material particle size, product particle size and grade, system capacity, working conditions and topographical features.

大华破碎机组合 5

装载机徐工LW600KN 6                              挖掘机

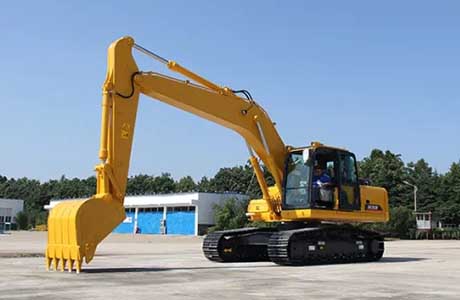

Wheel Loader                                                                                                                                Crawler Excavator

压路机山工 SEM520 9                              SD32 5

Road Roller                                                                                                                                   Bulldozer

仓栅车                              自卸半挂

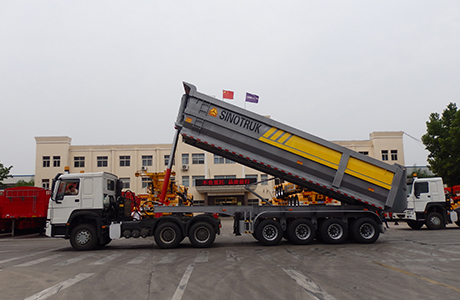

Stake Cargo Truck                                                                                                                        Tipper Semi Trailer

新铵油炸药车 1                              维修车 2

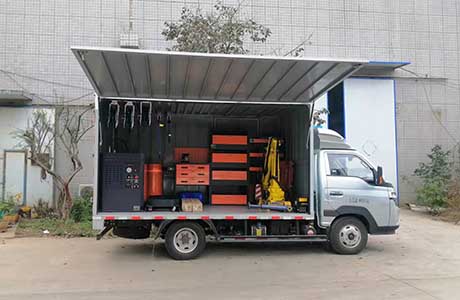

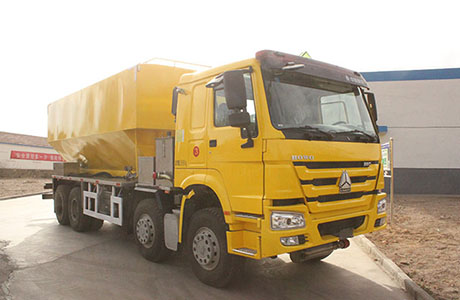

                  Porous granular ANFO explosive site mixing and charging truck                                                             Mobile Workshop Vehicle



新大华破碎机组合 1
