Features: The whole production line with simple process, small floor space. The equipments have high degree of automation, with high production efficiency and output. The finished particles have good shape with proper grade. It can meet the requirements of variety of the aggregates used in the field of construction industry.
Crushing Process
This system is applied for the granite (basalt) aggregates production with the production capacity of 500t/h. the process flow is vibrating feeder – jaw crusher – cone crusher – vibrating screen – sand washer.

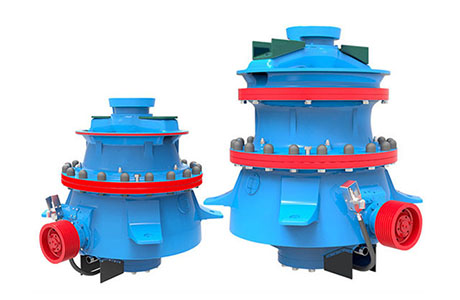

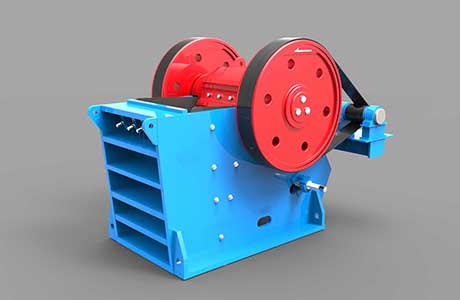

JC series jaw crusher cone crusher

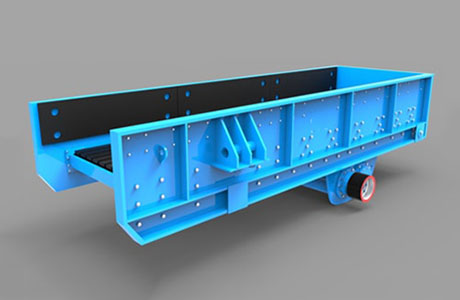

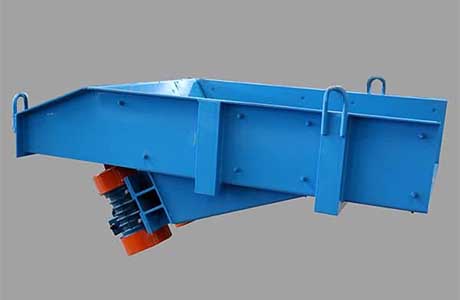

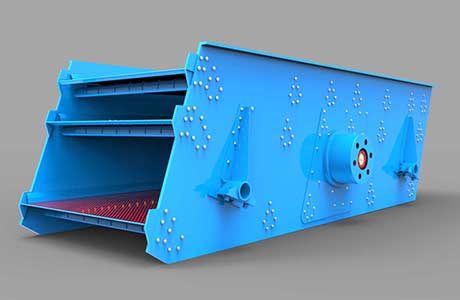

Grizzly Feeder Vibrating Screen

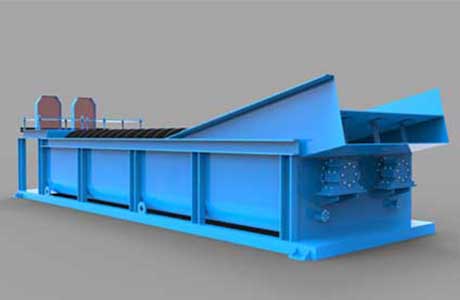

Vibrating Screen Sand Washer
500t/h - Granite (Basalt) Production Configuration Table
No. | Equipment | Model | Unit | Quantity | Power(kw) | Total Power(kw) | Output(t/h) | Weight(kg) | Remark |
G1 | Grizzly Feeder | ZSW600x150 | pc | 1 | 37 | 37 | 260-620 | 11434 | |
P1 | Jaw Crusher | JC125 | pc | 1 | 160 | 160 | 360-800 | ||
G2 | Vibrating Feeder | ZG400 | pc | 2 | 2×2.0 | 8 | -400 | ||
G3 | Vibrating Feeder | ZG300 | pc | 2 | 2x1.5 | 6 | -300 | ||
P2 | Cone Crusher | GPY500S | pc | 1 | 315 | 315 | 295-1200 | 45000 | |
P3 | Cone Crusher | HPY300 | pc | 2 | 220 | 440 | 75-430 | 19500 | |
S1 | Vibrating Screen | 3YKR2460 | pc | 2 | 45 | 90 | 120-880 | 11046 | |
XL1 | Sand Washer | XL914 | pc | 1 | 15 | 15 | -100 | 6370 | wet method |
C1 | Iron Separator | pc | 1 | ||||||
G4 | Vibrating Feeder | ZG200 | pc | 1 | 2×0.75 | 1.5 | -200 | ||
P4 | Sand Making Machine | PLS-1200 | pc | 1 | 500-600 | 500-600 | 300-715 | 19690 | |
S2 | Vibrating Screen | 2YK3073 | pc | 1 | 55 | 55 | 150-900 | 15476 | |
XL2 | Sand Washer | 2XL914 | pc | 1 | 2X15 | 30 | -200 | 11300 | wet method |
C2 | Iron Separator | pc | 1 |
600t/h - Granite (Basalt) Production Configuration Table
No. | Equipment | Model | Unit | Quantity | Power(kw) | Total Power(kw) | Output(t/h) | Weight(kg) | Remark |
G1 | Grizzly Feeder | ZSW600×180 | pc | 1 | 45 | 45 | 400-1000 | 13500 | |
P1 | Jaw Crusher | JC140 | pc | 1 | 200 | 200 | 470-985 | ||
G2 | Vibrating Feeder | ZG400 | pc | 3 | 2x2.0 | 12 | -400 | ||
G3 | Vibrating Feeder | ZG300 | pc | 2 | 2x1.5 | 6 | -300 | ||
P2 | Cone Crusher | GPY500S | pc | 1 | 315 | 315 | 295-1200 | 45000 | |
P3 | Cone Crusher | HPY300 | pc | 2 | 220 | 440 | 75-430 | 19500 | |
S1 | Vibrating Screen | 3YKR2460 | pc | 2 | 45 | 90 | 120-880 | 11046 | |
XL1 | Sand Washer | XL914 | pc | 2 | 15 | 30 | -100 | 6370 | wet method |
C1 | Iron Separator | pc | 1 | ||||||
G4 | Vibrating Feeder | ZG200 | pc | 2 | 2×0.75 | 3 | -200 | ||
P4 | Sand Making Machine | PLS-1200 | pc | 1 | 500-630 | 500-600 | 300-715 | 19690 | |
S2 | Vibrating Screen | 2YK3073 | pc | 1 | 55 | 55 | 150-900 | 15476 | |
XL2 | Sand Washer | XL1118 | pc | 2 | 22 | 44 | -175 | 12703 | wet method |
C2 | Iron Separator | pc | 1 |
Notes: the equipment in the sheet is used for reference, the final equipment configuration should be selected due to material particle size, product particle size and grade, system capacity, working conditions and topographical features.

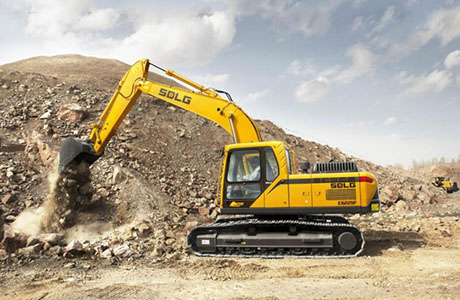

Wheel Loader Crawler Excavator

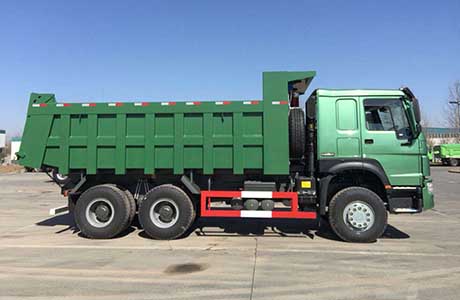

Dump Truck Tipper Semi Trailer

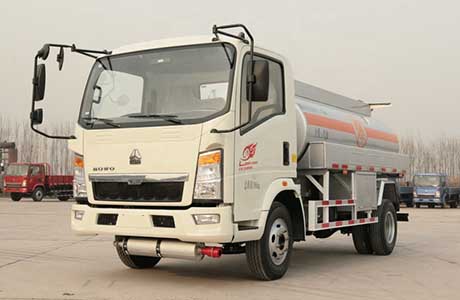

Water Tank Truck Fuel Tank Truck

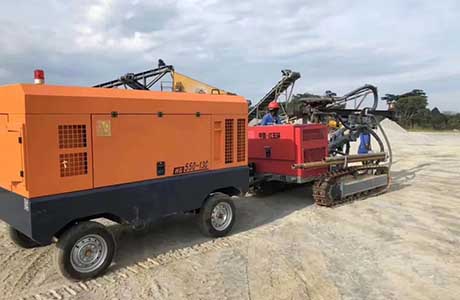

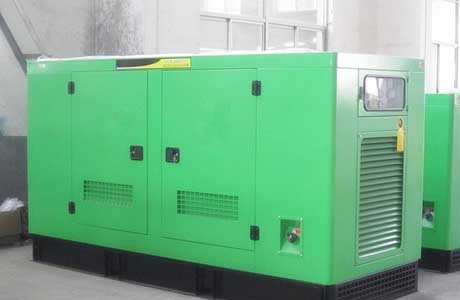

Diesel Generator Set Automatic Crawler Mounted DTH Drilling Rig
