300-400T/H Granite/Basalt Aggregates Production Line

300-400T/H Granite/Basalt Aggregates Production Line

This system is applied for the processing and crushing of hard materials like granite and basalt with the production capacity of 300t/h. The process flow is vibrating feeder – jaw crusher – cone crusher – vibrating screen – sand washer.

颚破机300-400                              破碎机GPY

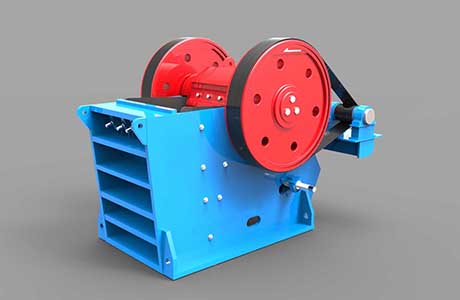

                      JC series jaw crusher                                                                                       GPY cone crusher

破碎机HPY                              制砂机300-400

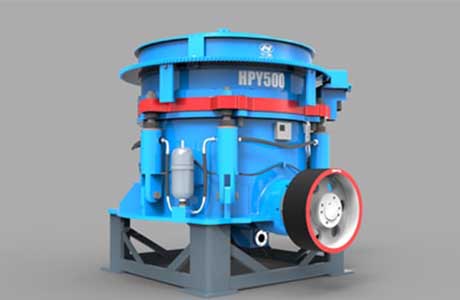

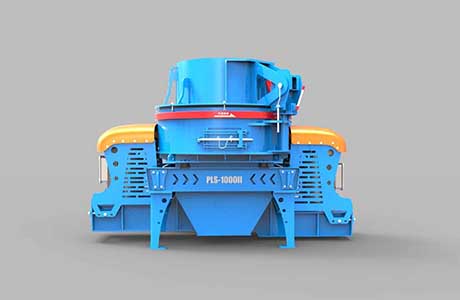

                       HPY cone crusher                                                                                           Sand making machine

振动给料机300-400                              振动筛 1

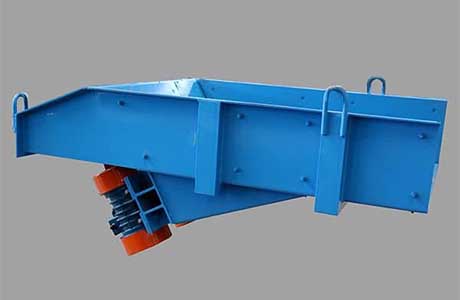

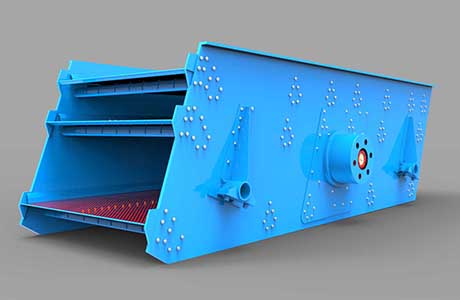

                      Grizzly Feeder                                                                                                  Vibrating Screen

振动筛                              洗沙机300-400

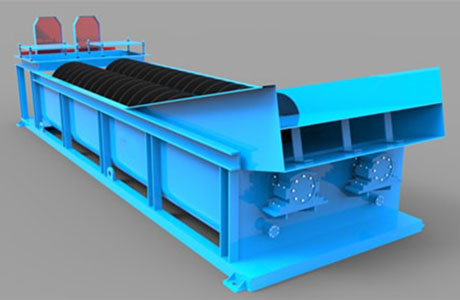

                      Vibrating Screen                                                                                               Sand Washer

300t/h - Granite (Basalt) Production Configuration Table

No.

Equipment

Model

Unit

Quantity

Power(kw)

Total Power(kw)

Output(t/h)

Weight(kg)

Remark

G1

Grizzly Feeder

ZSW600×130

pc

1

30

30

220-560

8270


P1

Jaw Crusher

JC110

pc

1

110

110

240-590



G2

Vibrating Feeder

ZG300

pc

2

2×1.5

6

-300



G3

Vibrating Feeder

ZG300

pc

1

2×1.5

3

-300



P2

Cone Crusher

GPY200S

pc

1

160

160

225-345

16000


P3

Cone Crusher

HPY400

pc

1

315

315

105-615

32000


S1

Vibrating Screen

3YKR2773

pc

1

55

55

150-1100

18031


XL1

Sand Washer

XL762

pc

1

15

15

-75

5225

wet method

C1

Iron Separator


pc

1






G4

Vibrating Feeder

ZG150

pc

1

2×0.75

1.5

-150



P4

Sand Making Machine

PLS-1000

pc

1

320-500

320-500

200-585

16500


S2

Vibrating Screen

2YK2460

pc

1

37

37

120-880

9076


XL2

Sand Washer

XL1118

pc

1

22

22

-175

12703

wet method

C2

Iron Separator


pc

1






400t/h - Granite (Basalt) Production Configuration Table

No.

Equipment

Model

Unit

Quantity

Power(kw)

Total Power(kw)

Output(t/h)

Weight(kg)

Remark

G1

Grizzly Feeder

ZSW600×130

pc

1

18.5

18.5

220-560

8270


P1

Jaw Crusher

JC125

pc

1

160

160

360-800



G2

Vibrating Feeder

ZG300

pc

2

2×1.5

6

-300



G3

Vibrating Feeder

ZG400

pc

1

2x2.0

4

-400



P2

Cone Crusher

GPY300S

pc

1

250

250

350-430

23600


P3

Cone Crusher

HPY500

pc

1

400

400

135-770

42500


S1

Vibrating Screen

3YKR2160

pc

2

45

90

115-820

10652


XL1

Sand Washer

XL914

pc

1

15

15

-100

6370

wet method

C1

Iron Separator


pc

1






G4

Vibrating Feeder

ZG200

pc

1

2×0.75

1.5

-200



P4

Sand Making Machine

PLS-1200

pc

1

500-600

500-600

300-715

19690


S2

Vibrating Screen

2YK2475

pc

1

45

45

180-900

13924


XL2

Sand Washer

XL1118

pc

1

22

22

-175

12703

wet method

C2

Iron Separator


pc

1







Notes: the equipment in the sheet is used for reference, the final equipment configuration should be selected due to material particle size, product particle size and grade, system capacity, working conditions and topographical features.


大华破碎机组合 5


装载机                              挖掘机

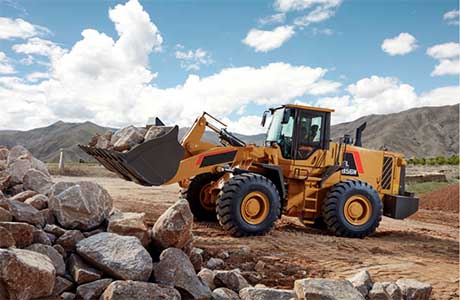

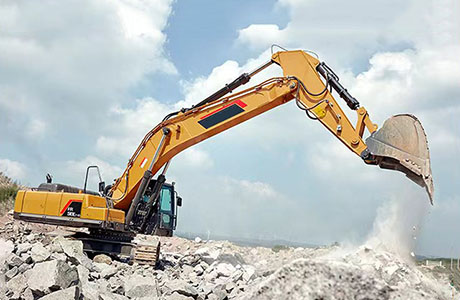

                  Wheel Loader                                                                                                                         Crawler Excavator

自卸车                              自卸半挂

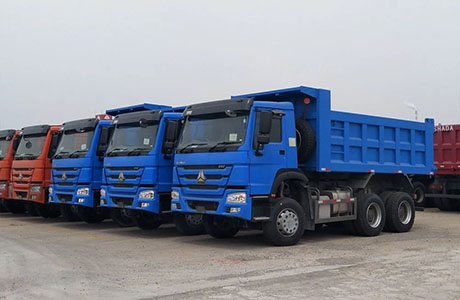

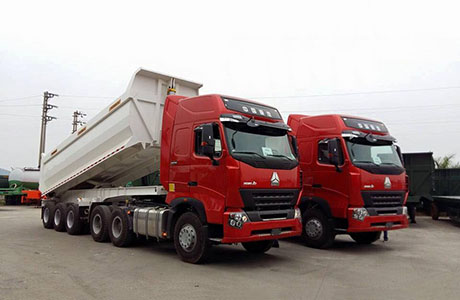

                  Dump Truck                                                                                                                               Tipper Semi Trailer

洒水车                              加油车

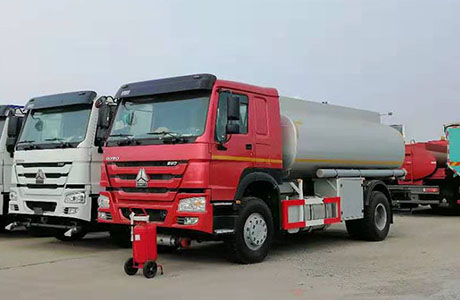

                  Water Tank Truck                                                                                                                         Fuel Tank Truck

发电机组                              潜孔钻

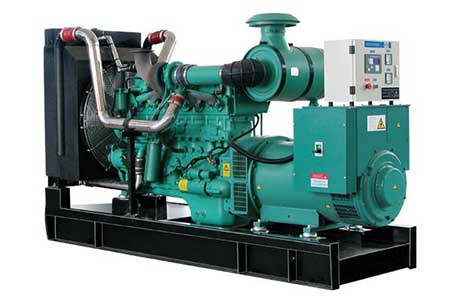

                    Diesel Generator Set                                                                                                                Automatic Crawler Mounted DTH Drilling Rig

新大华破碎机组合 1
