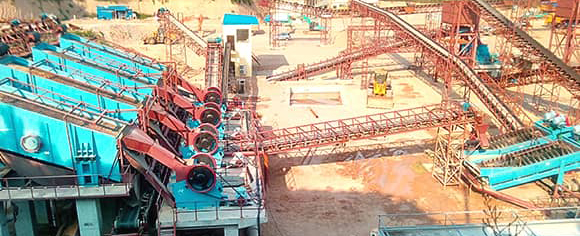

1000T/H Granite/Basalt Aggregate Production Line

1000T/H Granite/Basalt Aggregate Production Line

Description:

This technique with 1000t/h capacity is capable for processing and crushing of hard materials such as granite or basalt. The bulk raw material gain from blasting or hole digging is feed into raw material warehouse by dump truck, then sent into jaw crusher by bar feeder with pre screening function. The processed material then sent into cone crusher through belt conveyor for secondary fine crushing. The crushed material sent into first screening workshop for grading screening. The larger particles would be sent back to cone crusher for re-crushing and the particle size that meet the clients’ needs would convey into processed material warehouse.

Sand making system could be added into the system for fine sand production due to the project requirement (shown in dotted line box). The mixed material with particle size of 5-40mm which separated in first screening workshop would be sent into sand making workshop by belt conveyor. Then the material would feed evenly into sand making machine by vibrating feeder machine，and the processed material crushed by sand making machine would send into second screening workshop for different particle size products.

Advantages:

Simple technique, small area required, highly automated systematic machines, high production efficiency, high production capacity, well particle shape, rational grade allocation, low operation cost, could satisfy the requirement of aggregate in several conditions of construction industry.

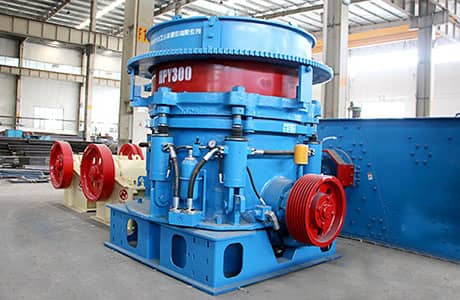

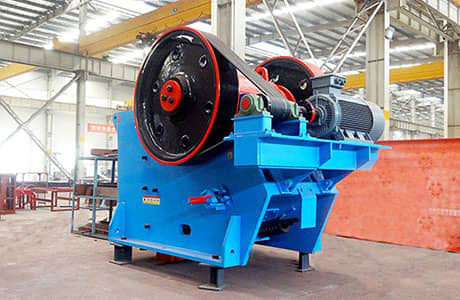

                                          JC series jaw crusher                                                                                                                         HPY multi cylinder hydraulic cone crusher

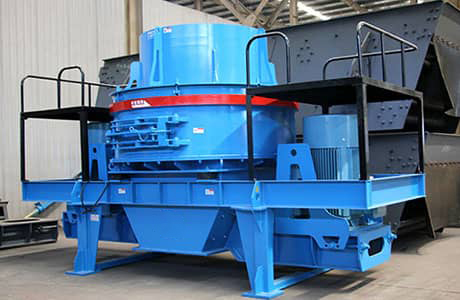

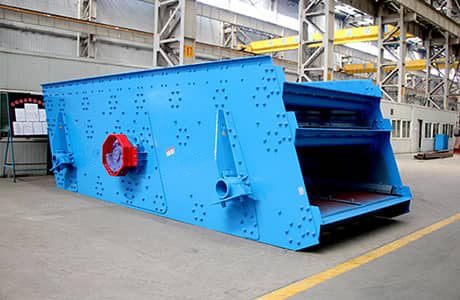

                        PLS series vertical impact crusher                                                                                                                                  YKR series vibrating screen

Configuration of 1000t/h granite(basalt) aggregate production line

Notes: the equipment in the sheet is used for reference, the final equipment configuration should be selected due to material particle size, product particle size and grade, system capacity, working conditions and topographical features.

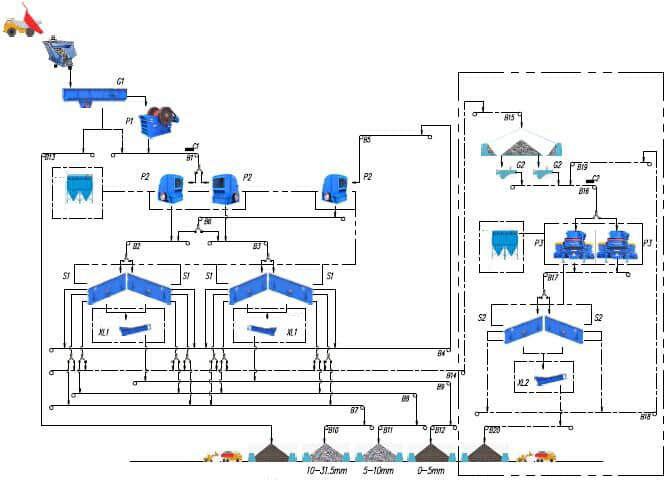

Flow diagram of 1000t/h granite(basalt) aggregate production line

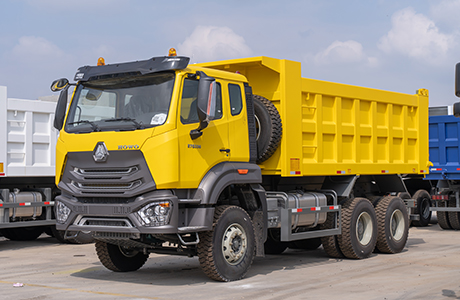

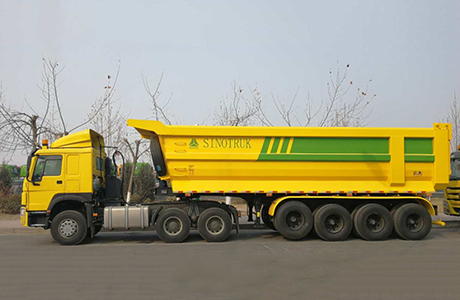

                                               Dump Truck                                                                                                                                                         Tipper Semi Trailer

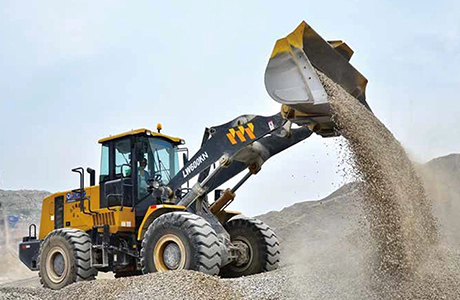

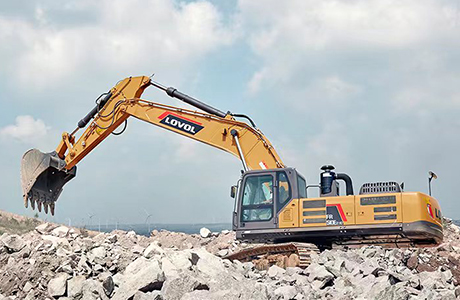

                                              Wheel Loader                                                                                                                                                         Crawler Excavator

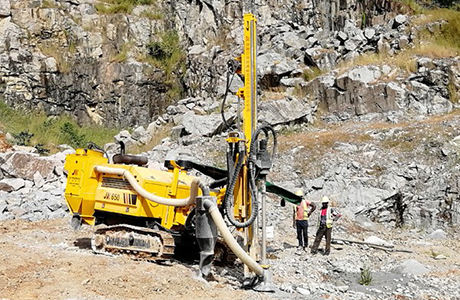

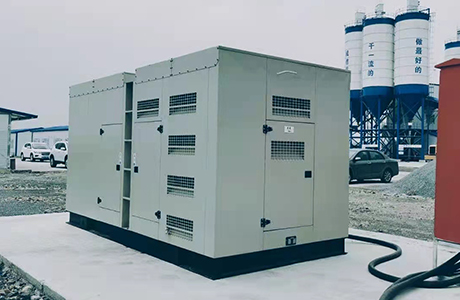

                                         Diesel Generator Set                                                                                                                       Automatic Crawler Mounted DTH Drilling Rig
