SINOTRUK HOWO 4X2 Van Truck

Availability:
Quantity:
  • ZZ5047XXYD3413C145

  • SINOTRUK HOWO

Product Description

新重汽 32

1.Performance: Strong engine power, large torque, high power transmission efficiency, good fuel economy, suitable for all walks of life.

2.Structure: high strength material, lightweight chassis and box design, less spring, strong bearing capacity.

3.Cities, suburbs, mining areas and rural areas;

4.short distance transportation generally within 200 kilometers;

5.the main transport sand, construction slag, building materials, waste transportation;

Low requirements for speed and price sensitivity.

新重汽 34

SINOTRUK HOWO 4X2 LIGHT CARGO TRUCK SPECIFICATION

Truck Model

ZZ1047D3413C145(Left Hand Drive )

Truck Brand

SINOTRUK-HOWO

Dimension (LxWxH) (unloaded)mm

5995×2150×3100

Cargo body

3850 x2050x2050 mm

Cargo body thickness (mm)

Bottom:3 mm, side:1.5 mm

Approaching angle/ Departure angel (°)

20/18

Overhang (front/rear) (mm)

1160/1475

Wheel base (mm)

3360

Max. Driving speed (km/h)

95

Front axle loading capacity (kg)

2000

Rear axle loading capacity(kg)

3500

Curb weight (kg)

2400

Gross vehicle weight

4495

Cab

1760 Extended cab,with A/C

Engine Model

Model

YUNNEI brand,YN4100QBZL, 110hp

Rated Power(kw/rpm)

81/3050

Clutch

Diaphragm spring clutch,single plate

Transmission

Model

WLY535,5F&1R

Brake system



Service brake

Dual circuit air brake

Parking Brake

Spring energy, compressed air operating on rear wheels

Steering system

Model

Power steering,Adjustable steering wheel.

(left hand driving)

Front axle

(2T)Forging I-beam,Drum brake.

Rear axle

(3.5T) Pressed welding axle housing drum brake.

Tire

7.00R16 Radial tire 6 pieces with 1 Spare tire.

Electrical system



Type

SINOTRUK CAN bus system with VCO instrument

Voltage

12V,

Batteries

2*12V, 120 Ah

Alternator

28V/35A

Starter

4.5Kw

Cigar-lighter, horn, headlamps, fog lights, brake lights, indicators and reverse light.

Oil Tank

120L fuel tank

Packing

Nude Pack.The packing of the commodity shall be in accordance with the export standard packing of the manufacturer,be suitable for long distance transportation of ocean and inland. The Seller shall be take measures against moisture,shocks and rust according to the special needs of the commodity.

The manufacturer reserves the right of technical alteration /change for better improvement without prior notice

We are the agency for SINOTRUK wholesale truck series, we can supply HOWO tractor trucks, HOWO dump trucks, trailer truck, truck parts, agricultural machinery, Construction machinery and parts,HOWO concrete mixer trucks, special trucks and so on.we can supply trucks for our clients with good quality and competitive price, because we get directly support from the CNHTC factory.

新重汽 37

Main products

1. Dump Truck / Tipper Truck

2. Fire Fighting Truck / Fire Truck / Fire Vehicle / Fire Engine

3. Truck with crane / Truck mounted crane

4. Oil Tank Truck / Fuel Tanker Truck

5. Water truck / Water Tank Truck / Water Sprinkler Truck

6. Concrete Mixer Truck

7. Van truck / Insulated truck/ Refrigeration truck

8. Fecal suction truck / Sewage suction truck

9. Cement Powder Tank truck/ Bulk cement truck

10. High-altitude operation truck

11. Self-loading garbage truck, garbage compactor truck, sealed garbage truck,

12. Semi Trailer ( flat bed trailer / skeleton trailer / dump semi trailer / side wall trailer / low bed trailer / van container trailer / warehouse trailer, etc. )

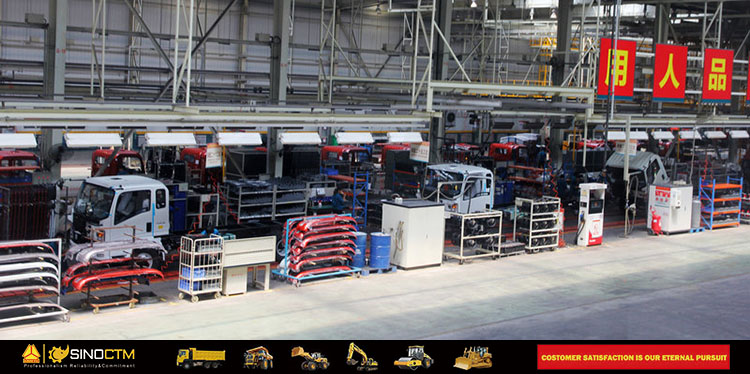

轻卡汇总 6

新重汽 38新重汽 39
