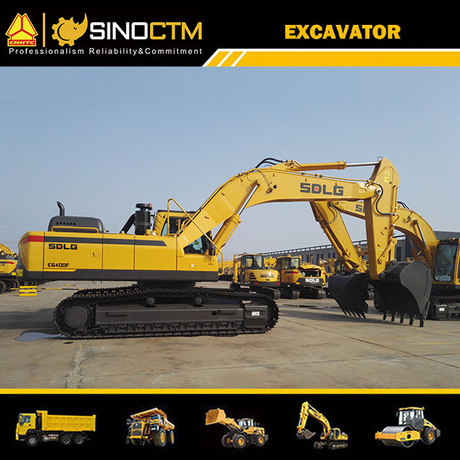

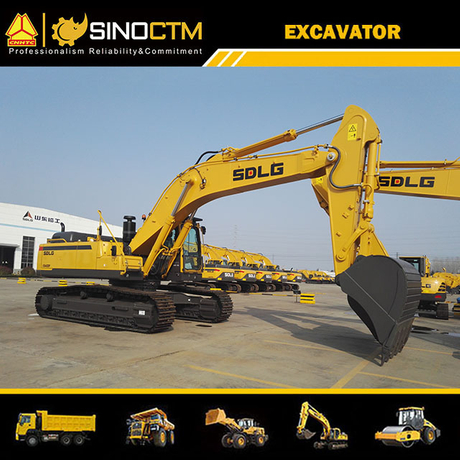

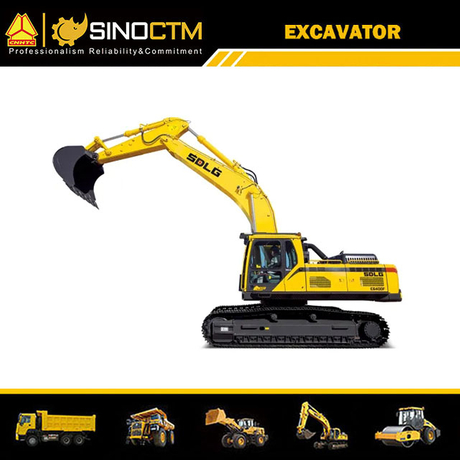

SDLG E6400F HYDRAULIC EXCAVATOR SPECIFICATIONS | |||
SDLG E6400F is an upgrade product based on European advanced technology and manufacturing technology, which is developed with great concentration suitable for various bad working conditions. It is equipped with specialized SD130A engine for SDLG with slow-speed of revolution and large torque, with strong power, high reliability and low fuel consumption. It is widely used in large-scale mineral exploitation and construction project and other working conditions. | |||
OVERALL DIMENSION | |||
Dimension (LxWxH) (unloaded)mm | 11020*3465*3580 | ||
Overall width of upper assembly | 3290mm | Overall width | 3465mm |
Overall height of cab | 3580mm | Tail swing radius | 3500mm |
Overall height of engine hood | 2700mm | Ground clearance of counterweight | 1210mm |
Wheelbase | 4240mm | Crawler length | 5180mm |
Crawler gauge | 2740mm | Crawler pad width | 600mm |
Min ground clearance | 500mm | Overall length | 11020mm |
Overall height of boom | 3580mm | -- | -- |
OVERALL PARAMETER | |||
Bucket capacity | 2.0m3 standard | Overall operating weight | 40050kg |
Max excavation force | 236kN | Swing speed | 10.3r/min |
Traveling speed(low/high) | 3.4/5.3km/h | Average ground pressure | 69.4kPa |
Max digging radius | 10610mm | Max digging depth | 6850mm |
Max digging height | 10170mm | Max dumping height | 7090mm |
Min front swing radius | 4380mm | -- | -- |
ENGINE | |||
Model | DEUTZ SD130A | Type | Four stroke, supercharged, intercooled |
Rated power/speed | 215kW/1700r/min | Displacement | 12.8L |
Cylinder bore/stroke | 131x158mm | Emission standard | EURO III |
Rated fuel consumption | 198g/kW.h | Max torque | 1580N.m |
TRAVELING/SWING SYSTEM | |||
Qty of carrier rollers(single side) | 2 | Qty of track rollers(single side) | 9 |
Traveling brake type | Wet disc | Swing mode | Hydraulic drive internal tooth single row ball bearing |
Swing brake type | Wet brake | Hydraulic control Type | Pilot proportional control valve |
Hydraulic system type | Double-pump constant power and negative flow control system | Max flow | 2x300+25.5L/min |
Operating pressure | 320/350kgf/cm2 | Main pump model | KAWASAKI K3V180DT |
Main valve model | KMX32N | Boom cylinder-cylinder bore*diameter of piston rod * stroke | 2-160x105x1530mm |
Arm cylinder-cylinder bore*diameter of piston rod * stroke | 1-175x115x1700mm | Bucket cylinder-cylinder bore*diameter of piston rod * stroke | 1-145x100x1285mm |
FILL CAPACITY | |||
Fuel | 620L | Engine oil | 45L |
Hydraulic oil | 515L | Swing reducer | 6.0L |
Traveling gearbox | 2x6.8L | -- | -- |
Packing | Nude Pack.The packing of the commodity shall be in accordance with the export standard packing of the manufacturer,be suitable for long distance transportation of ocean and inland. The Seller shall be take measures against moisture,shocks and rust according to the special needs of the commodity. | ||
The manufacturer reserves the right of technical alteration /change for better improvement without prior notice | |||
Energy-saving and efficiency:
The product is equipped with 13L electronic fuel injection engine of large discharge capacity produced by Volvo for Lingong, which has great power, low speed of revolution, better dynamic property and low fuel consumption;
Automatically back to idle speed: 5s (default) after inaction of guide handle, the engine will automatically reduce to idle speed. The service lifetime of the engine is prolonged thanks to energy conservation and noise reduction.
The hydraulic system adopts independent motor-driven fan for heat dissipation. The revolving speed of the fan could be automatically adjusted, with better dissipation effect and longer duration;
Reliability and durability:
Oil-bath air filter could make the filtering more complete and air supply safer. Under the bad condition in mine, the early-wear failure rate of engine is the lowest;
Three-level oil filter, with large area and higher accuracy of filtering, makes the engine safer and more reliable during operation;
Comfort and environmental protection:
The product is equipped with standard skylight, optional rear camera, and color LED monitor, without dead corner of view and with controllable operation status of machine.
Negative flow hydraulic system commissioned elaborately by VOLVO is matched perfectly with engine, which ensures that the harmony of compound control action is better and the handfeel is facile;
Convenient maintenance:
The driving cab is equipped with computer remote diagnose interface and external power source interface. After the computer is provided with diagnose program (TECHTOOL), the fault could be inspected by itself and maintenance is convenient and efficient.
The fan pulley could be expanded and tightened automatically, decreasing the time of shutdown and making the maintenance simpler
