Aluminum Fuel Tank Truck For Airport With Pump

SINOTRUK HOWO Aircraft Refueller Truck

Model: ZZ1257N5841W

Engine:WD615.47; 371hp; Euro II

Transmission: HW19710,10 forward and 2 reverse

Steering: ZF8118Left hand driving

Axles: Front:9000kg &  Rear:2*16000

Tire: 12.00R20 radial tyre,with 1 Spare tire.

20,000 Liters Aluminum Tank

Defuelling≥300(L/min)

Max Flow rate: 1200 LPM

Fully modular design

2 Hose Reels hydraulically driven

1 x O/W + 1 x U/W

Intrinsically Safe Electrical System

GORMAN RUPP pump hydraulically driven

VELCON Filter Water Separator

SATAM/LIQUID CONTROLS/ISOIL Meter

Defueling Capability

Interlock system (proximity switches)

Availability:
Quantity:
  • ZZ1257S4641W HOWO Aircraft Refueller Truck

  • SINOTRUK HOWO

Product Description

新重汽 32

SINOCTM is located in Ji′Nan city, Shandong province, SINOCTM aims to provide the project solutions with best cost performance to customers from China and abroad. Our main business are construction solutions consultancy, equipments supply, technical instruction, parts supply, service & training, logistic support and etc, providing the steward type service.



We cooperate with SINOTRUK, FOTON, SDLG, XCMG, Liugong, Shantui, Sany, Zoomlion, Hongda and other premium brands to provide tailored project solutions to your specific needs. We can help you to avoid long-time communication with different suppliers, which will save you time and cost. As to after market, with many years′ experience in the industry and long-term partnership with the suppliers, we do provide timely after market with lower cost and higher availability.

新重汽 34

SINOTRUK HOWO AIRCRAFT REFUELLER TRUCK SPECIFICATIONS

Truck Model

ZZ1257N5841W

Truck Brand

SINOTRUK-HOWO

Dimension (LxWxH) (unloaded)mm

11650×2550×3250

Tank volume(m³)

20,000 Liters Aluminum Tank

Max Flow rate: 1200 LPM;Fully modular design

2 Hose Reels hydraulically driven;1 x O/W + 1 x U/W

Intrinsically Safe Electrical System;GORMAN RUPP pump hydraulically driven;VELCON Filter Water Separator

SATAM/LIQUID CONTROLS/ISOIL Meter;Defueling Capability

Interlock system (proximity switches)

Approaching angle/ Departure angel (°)

16/9

Overhang (front/rear) (mm)

1500/3263

Wheel base (mm)

5800+1400

Max. Driving speed (km/h)

95

Front axle loading capacity (kg)

9000

Rear axle loading capacity(kg)

2*16000

Curb weight (kg)

16000

Gross vehicle weight

30000

Cab Model

SINOTRUK HW76 Lengthen cab,single bunk,all steel forward control, 55o hydraulically tiltable to the front,2-arm windscreen wiper system with 3 speeds, laminate windscreen, with casted-in radio aerial, hydraulically damped adjustable driver’s seat and rigid adjustable co-driver’s seat, heating & ventilation system, adjustable roof flap, with stereo radio/MP3, sun visor, and adjustable steering wheel, air horn, with 4-point support fully floating suspension and shock absorber with transverse stabilizer, safety belt, air conditioner.

Engine Model

Model

WD615.47 EURO II,371hp,6-cylinder in line, 4-stroke, water-cooled, turbo-charged & inter-cooled, direct injection

Rated Power(kw/rpm)

273/2200

Make SINOTRUCK (CNHTC), Euro II emission standard, Thermostat with 80℃ opening begin, Rigid fan

Clutch

SINOTRUK Φ430 diaphragm-spring clutch,hydraulically operating with air assistance

Transmission

Model

SINOTRUK HW19710 transmission ,10 forward and 2 reverse

Brake system



Service brake

Dual circuit compressed air brake

Parking Brake

(emergency brake)

Spring energy, compressed

Steering system

Model

ZF8118 Steering Gear Box ,hydraulic steering with power assistance.

(Left hand driving)

Front axle

SINOTRUK 9000kg Front Axle,new 9-ton front axles of equipped with drum brakes.

Rear axle

SINOTRUK 2*16000 Heavy reduction drive axle,STR hub-reduction with differential locks between wheels and axles, enforced STR axle,ratio:4.42;The basic configuration of HOWO series construction vehicle can be used in such bad environment as bad road condition, heavy impact and overloading, which is the best choice for heavy construction vehicle customers.

Wheels &Tire

Rims:8.5-20 10 hole-steel ;Tyres:12.00R20 radial tyre with 1 Spare tire.

Electrical system

Electrics Operating voltage

24V,negative grounded

Starter

24V,7.5 Kw

Alternator

3-phase,28V,1500 W

Batteries

2x12 V,165 Ah

horn,headlamps,fog lights,brake lights,indicators and reverse light.

Oil Tank

Square type-400L Aluminum alloy fuel tank

Packing

Nude Pack.The packing of the commodity shall be in accordance with the export standard packing of the manufacturer,be suitable for long distance transportation of ocean and inland. The Seller shall be take measures against moisture,shocks and rust according to the special needs of the commodity.

The manufacturer reserves the right of technical alteration /change for better improvement without prior notice

JIG standard

1This aircraft refueller is designed for fuelling all types of turbine-powered aircrafts.

2The fuelling equipment includes all the necessary facilities and components to fuel aircrafts safely and efficiently.

3The fuelling equipment is mounted on a module base, which is easily removed from the rigid chassis and adaptable on any kind of similar chassis without the need of cutting or welding.

3The general design of the vehicle allows the operations to be completed easily and safely by one operator.

4The general design concept is simple for an easy maintenance and a use on flat airport fields.

Performance

1Through one 20m x 2.5” reel hose, the under wing refueling flow rate is 1200LPM.

2Through the other 20m x 1.5” reel hose, the over wing refueling flow rate is 350 LPM.

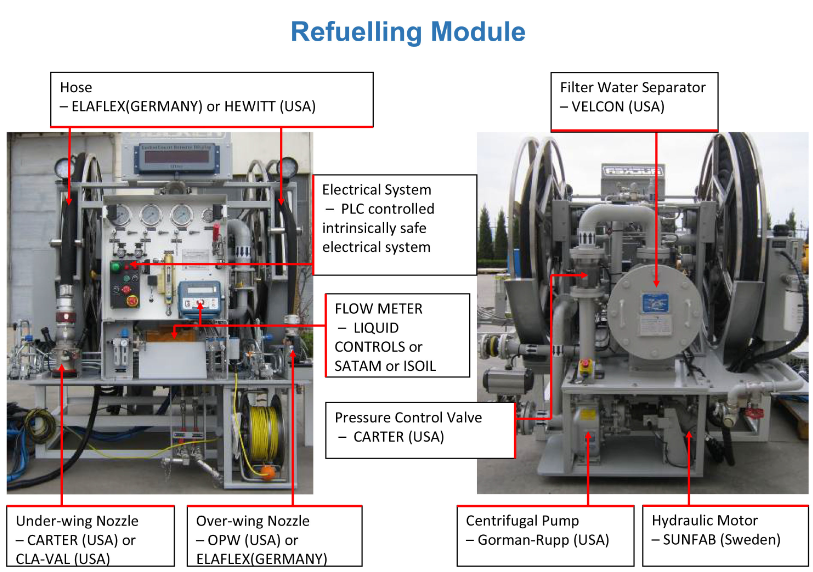

加油机 2

Feature

Feature

1Modular concept

2All components located in manner to provide the simplest possible pipe-work assembly allowing an easy access for removal, operation and maintenance.

3Water separator filter manufactured to meet the EI 1581 Fifth edition standard.

4Advanced electrical controlled or manual operated refuelling system.

5An intrinsically safe electro-pneumatic “deadman” control handle installed and act upon the secondary pressure control valve to interrupt flow.

6Advanced fuel tank design to ensure deposited water and impurity discharging.

7Piping system scientific designed to reduce fuel circuit resistance and static.

8、Piping system built in stainless steel.

Safety:

1A safety Interlock system is incorporated to apply the vehicle parking brake slowly to prevent abnormal motion.

2Deadman must be activated during refuelling to ensure operator on site.

3Emergency Deadman control available in case of deadman handle malfunction during refueling.

4Interlock override switch for driving refueller away from aircrafts in case of emergency.

5Emergency engine stop switches on both sides for shutting off engine and refuelling in emergency.
