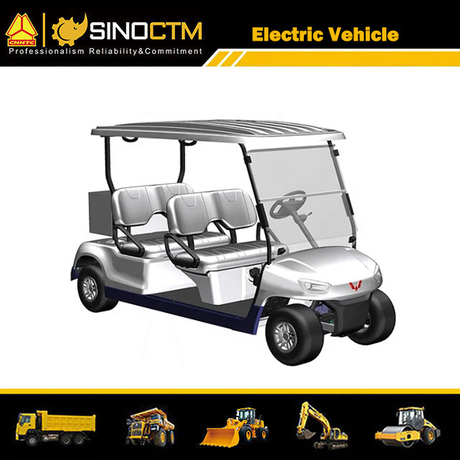

Electric Golf Cart（4 Sets） | ||
Motor Controller | Brand | CURTIS(KDS) |
Model | 1232SE | |
Electric Motor | Brand | HEPU POWER |
Type | AC asynchronous motor | |
Rated Power(Kw) | 4 | |
Battery | Brand | Leoch |
Voltage (V) | 6*8 | |
Capacity of Battery(Ah) | 170 | |
Off-vehicle Charger | Charging Time(H) | 6-8 |
Input Voltage | 85-265VAC | |
Dimension Parameters | Dimension(L*W*H, mm) | 3086*1200*1740 |
Wheelbase (mm) | 2440 | |
Track(F/R, mm) | 875/980 | |
Mass parameters | Curb weight (kg) | 500 |
Maximum total mass(kg) | 900 | |
Passenger capacity | 4 | |
Through parameter | Min. turning diameter (m) | 8.02 |
Min.ground clearance(full load,mm) | 116 | |
performance | Max. speed (full load) (km/h) | 24 |
Max. climb %(°) | 30(16.7) | |
Cruising range(km) | 90 - 110 | |
Suspension frame | Front suspension | Horizontal leaf spring independent |
Rear suspension | Integral non-independent suspension | |
Tires | Type of tire | Pneumatic rubber tire |
Tire specification | 18x8.5-8 | |
The manufacturer reserves the right of technical alteration /change for better improvement without prior notice | ||
Our Advantages
High-strength aluminum alloy body frame. Compared with the iron material based on the same configuration,the cruising range is increased by 25%.
The chassis standard parts are all treated with Dacromet to minimize the risk of rust.
The rear axle is developed according to the standard of passenger car, with high bearing capacity, reliable performance and long service life.
Company Profile
Wuling sightseeing car can be used for scenic spot sightseeing, public security patrol, short-distance shuttle, etc., so it is widely used in scenic spot, hotel, school, police station, fair…
Wuling sightseeing car with a stylish exterior, ride comfort, powerful engine or electric capacity, safety design, etc., especially its body is made by steel plate that be treated by electrophoresis treatment, this ensures a high quality and performance.
Electric sightseeing car series includes 8-seat,11-seat and14-seats. We can also design and manufacture customized sightseeing car according to customers.
