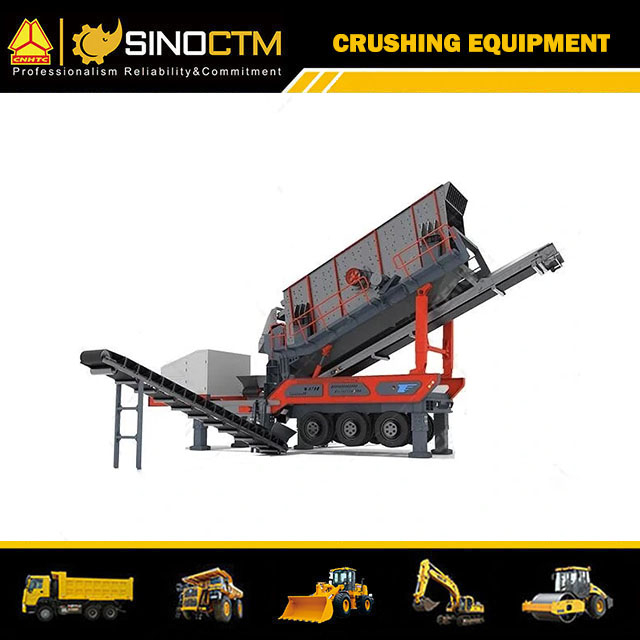

Tyre Wheel Mobile Screening Plant

Tyre Wheel Mobile Screening Plant

Appication IndustryConstruction works, Ming,Egergy

Type:Mobile Combination

Motor type:AC motor

Capacity(tph):85-850

Production:Mobile screen

Raw Material:Pebble,limestone,granite,Basalt

Availability:
Quantity:
  • Y3S1860

  • XCMG

Product Description

企业横幅 6-2

SINOCTM is located in Ji′Nan city, Shandong province, SINOCTM aims to provide the project solutions with best cost performance to customers from China and abroad. Our main business are construction solutions consultancy, equipments supply, technical instruction, parts supply, service & training, logistic support and etc, providing the steward type service.



We cooperate with SINOTRUK, FOTON, SDLG, XCMG, Liugong, Shantui, Sany, Zoomlion, Hongda and other premium brands to provide tailored project solutions to your specific needs. We can help you to avoid long-time communication with different suppliers, which will save you time and cost. As to after market, with many years′ experience in the industry and long-term partnership with the suppliers, we do provide timely after market with lower cost and higher availability.

新碎石组合 1

Tyre Wheel Mobile Screening Plant

Model

Y3S1848

Y3S1860

Y3S2160

Transportation Length(mm)

10280

11480

11480

Transportation Width(mm)

2830

2830

3150

Transportation Height(mm)

4350

4350

4350

Maximum Length(mm)

11100

11800

11800

Maximum Width(mm)

3600

3600

3970

Maximum Height(mm)

6000

6000

6500

Weight(t)

16

18

19

Tire Configuration

biax fitted

biax fitted

biax fitted

Packing

Nude Pack.The packing of the commodity shall be in accordance with the export standard packing of the manufacturer,be suitable for long distance transportation of ocean and inland. The Seller shall be take measures against moisture,shocks and rust according to the special needs of the commodity.

The manufacturer reserves the right of technical alteration /change for better improvement without prior notice


Introduction

This machine is used to separate materials into various sizes for further processing. The material is separated by passing it through a vibrating screen box which has some different sized screens, or meshes, The materials fall into a sieve and onto attached conveyors which stockpile the end products. The end products can then be used in the building and construction industries.

Wheeled Mobile Screening Station can be used for cement, limestone, granite, basalt, aggregate, calcite, quartz, concrete, dolomite, bluestone, iron ore, coal gangue, construction waste, ferrosilicon. It is widely used in mining, quarry, road (railway) and bridge construction, urban construction waste disposal and other fields.

 碎石站组合 19

Feature

1. Providing high-performance screening box.

2. Screen layers vary from 2 to 4.

3. Has the advantages of low noise, low emissions.

4. Automatic screening movement and adjustment, great screening efficiency.

5. The mobile vibrating screen can be used for the coarse crushing and fine crushing screening system. It can be operated independently by a single unit, or it can be flexibly composed of the system configuration unit.

 大华破碎机组合 5

Working Principle

Wheel type Mobile Screening Plant is a device that uses a spring as a supporting elastic element and a block eccentric vibrator as a vibration source to generate an exciting force through the rotation of the eccentric block, so that the screen box generates a circumferential reciprocating motion. The material continuously makes an approximate round bounce and roll movement on the inclined screen surface, and through repeated comparison with the sieve hole.

碎石机械产品-1新碎石组合 2
