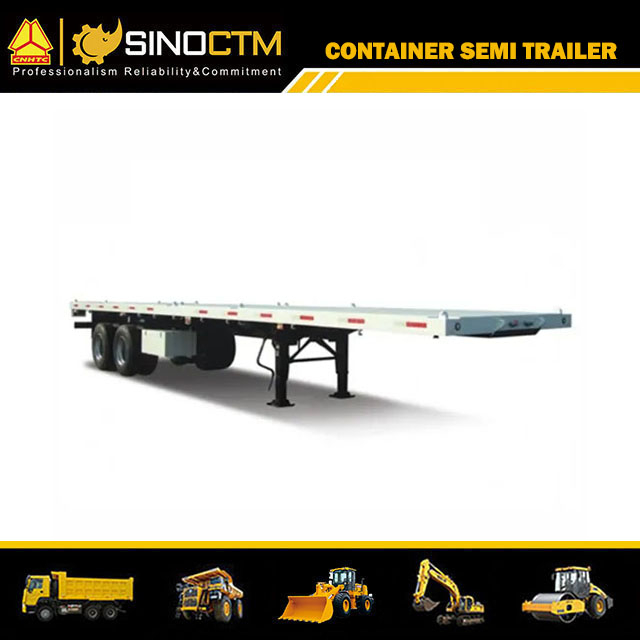

Two Axle Flat-bed container semi trailer 30T

Two Axle Flat-bed container semi trailer

Size:12500mm*2500mm*1500mm

Axles: Brand 13Ton *2axles

Tire:12R22.5 *8pcs

Twist lock :12units

Payload:30000kg

Availability:
Quantity:
  • LHY9400P

  • SINOCTM

Product Description

新重汽 32

SINOCTM is located in Ji′Nan city, Shandong province, SINOCTM aims to provide the project solutions with best cost performance to customers from China and abroad. Our main business are construction solutions consultancy, equipments supply, technical instruction, parts supply, service & training, logistic support and etc, providing the steward type service.



We cooperate with SINOTRUK, FOTON, SDLG, XCMG, Liugong, Shantui, Sany, Zoomlion, Hongda and other premium brands to provide tailored project solutions to your specific needs. We can help you to avoid long-time communication with different suppliers, which will save you time and cost. As to after market, with many years′ experience in the industry and long-term partnership with the suppliers, we do provide timely after market with lower cost and higher availability.

新发半挂车组合 1

TWO AXLE CONTAINER SEMI TRAILER SPECIFICATIONS

Tare weight

5300kg

Size

12500mm*2500mm*1500mm

Payload

30T

Main beam

Heavy duty and extra durability designed I beam; opting for high tensile steel Q345, welded by automatic submerged-Arc processes. Top flange 14mm,width140mm;Middle Flange 8mm height 500mm;bottom flange16mm,width 140mm

Side beam

16#/18# channel steel(Q235)

Cross member

10#/w shape channel steel(Q235)

Floor

3mm checkered plate

Side wall

No

Front board

Optional

Axle

2 axle  FUWA  brand  13T

Suspension

American type suspension

Leaf spring

10pcs*13mm*90mm

Tire

12R22.5  double star brand  8pcs

Wheel rim

9.0-22.5  jingu brand      8pcs

Kingpin

2" bolt-in king pin

Landing gear

two-speed, manual operating ,heavy duty landing gear 28T

Twist lock

12

Braking system

WABCO RE6 relay valve ;T30/30 spring brake chamber;40L air tanks

ABS

No

Light

LED 8 side lights and 2 rear lights 2 width lamp

Painting

Complete chassis sand blasting to clean rust ,1coat of anticorrosive prime,2coats of final paint

Accessories

One standard tool box,one spare tire carrier,one crank,one shaft head wrench,four side light,two rear light

Packing

Nude Pack.The packing of the commodity shall be in accordance with the export standard packing of the manufacturer,be suitable for long distance transportation of ocean and inland. The Seller shall be take measures against moisture,shocks and rust according to the special needs of the commodity.

The manufacturer reserves the right of technical alteration /change for better improvement without prior notice

新发半挂车组合 2

Main Features



40ft 3 Axle Container Flatbed Semi Trailers, offer the container trailers to maximize the payload. Our flatbed container trailer adopt advanced design concept. After fully understanding and analysing the transportation environment in different countries. Also the length of the trailers can be customized, like 45ft, 48ft, or 53ft container transportation trailers.



Our Container flatbed trailer is designed for stevedoring and transporting 1x40', 1x 20'or 2x20'ISO Cargo Containers and loose cargos. To make sure the servise life of the semi trailers, all the apare parts we adopt are World Famous brand. We use famous German WABCO braking valve will definitely shorten the Braking Distance, to make the safety of the trailers and the drivers. Also the trailers floor is checker plate, this will keep the other bulk cargo more stable, like the bags, or long stuff.



Introduction of production process

A.Steel auto cutting

B.Main beam auto submerged arc welding

C.Chassis reversal ensure every part been welding well

D.Shot blasting for rust cleaning

E.F.Welding by experienced worker

G.Final cleaning welding slag by worker

H.Dust-free painting line



Our flatbed truck semi trailer with multi-function , It's designed to carry long log , tube , 20ft 40ft container or bulk cargo. Our flatbed trailer can be match with SHACMAN , HOWO , FAW , BENZ ,  VOLVO , HINO , MAN and other brand tractor truck well.  In this case , our truck semi trailer makes the transportation much more flexible .

新发半挂车组合 4新发半挂车组合 3
