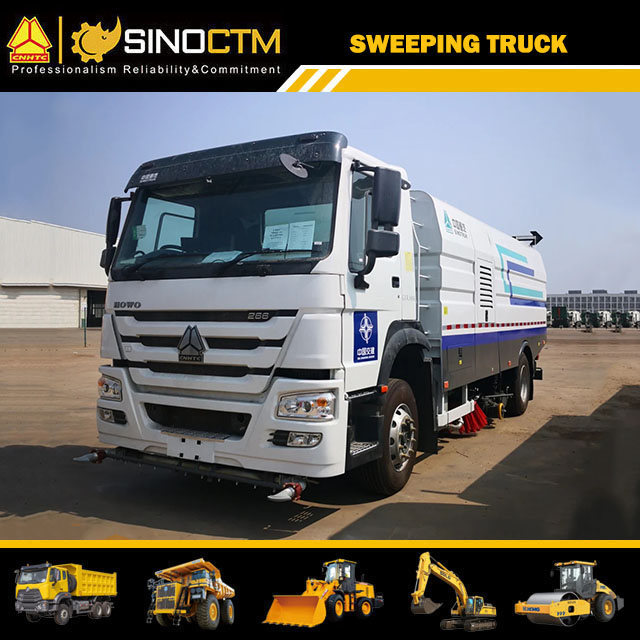

SINOTRUK HOWO Sweeping Cleaning Truck

SINOTRUK HOWO 4X2 Cleaning Truck

Model: ZZ1167M5011W

Cab:HW76 Lengthen cab,single bunk,with A/C.

Engine:WD615.87; 290hp; Euro II

Transmission: HW13710,10 forward and 2 reverse

Steering: ZF8198Left hand driving

Axles: Front:7000kg &  Rear:16000

Tire: 12R22.5 tubeless tyre,with 1 Spare tire.

Water Tank Volume: 10m³

Garbage Tank Volume: 6m³

Curb weight:12500kg

Overall Dimension:9450*2550*3300mm

Availability:
Quantity:
  • ZZ1167M5011W Sweeping Cleaning Truck

  • SINOTRUK HOWO

Product Description

新重汽 32

SINOCTM is located in Ji′Nan city, Shandong province, SINOCTM aims to provide the project solutions with best cost performance to customers from China and abroad. Our main business are construction solutions consultancy, equipments supply, technical instruction, parts supply, service & training, logistic support and etc, providing the steward type service.



We cooperate with SINOTRUK, FOTON, SDLG, XCMG, Liugong, Shantui, Sany, Zoomlion, Hongda and other premium brands to provide tailored project solutions to your specific needs. We can help you to avoid long-time communication with different suppliers, which will save you time and cost. As to after market, with many years′ experience in the industry and long-term partnership with the suppliers, we do provide timely after market with lower cost and higher availability.

新重汽 34

SINOTRUK HOWO 4x2 CLEANING TRUCK SPECIFICATIONS

Truck Model

ZZ1167M5011W

Truck Brand

SINOTRUK-HOWO

Dimension (LxWxH) (unloaded)

9450*2550*3650mm

Approaching angle/ Departure angel

16°/23°

Overhang (front/rear)

1500/1890mm

Wheel base

5000mm

Max. Driving speed

95km/h

Front axle loading capacity

7000kg

Rear axle loading capacity

16000kg

Curb weight

12500kg

Gross vehicle weight

18000kg

Sweeping & Washing Operation

Sweeping & Washing Width

3.6m

Driving Speed(Sweeping & Washing)

3-10km/h

Rated Pressure of Cleaning Water

10Mpa

Rated Flow of Cleaning Water

122L/min

Sweeping Operation

Sweeping Width

3.6m

Sweeping Speed

3-15km/h

Cleaning Speed(Rough Cleaning)

3-20km/h

Max. Sweeping Capacity

70000m²/h

Discharging Angle

≥49°

Water Tank Volume

10m³

Garbage Tank Volume

6m³

Vice Engine

Model

QSB5.9-C170-30 CUMMINS

Power

125kw/2200r/min

Cab Model

SINOTRUK HW76 Lengthen cab,single bunk,all steel forward control, 55o hydraulically tiltable to the front,2-arm windscreen wiper system with 3 speeds, laminate windscreen, with casted-in radio aerial, hydraulically damped adjustable driver’s seat and rigid adjustable co-driver’s seat, heating & ventilation system, adjustable roof flap, with stereo radio/MP3, sun visor, and adjustable steering wheel, air horn, with 4-point support fully floating suspension and shock absorber with transverse stabilizer, safety belt, air conditioner.

Engine Model

Model

WD615.87(EURO II),290hp,6-cylinder in line, 4-stroke, water-cooled, turbo-charged & inter-cooled, direct injection

Rated Power(kw/rpm)

213/2200

Make SINOTRUCK (CNHTC), Euro II emission standard, Thermostat with 80℃ opening begin, Rigid fan

Clutch

SINOTRUK Φ430 diaphragm-spring clutch,hydraulically operating with air assistance

Transmission

Model

SINOTRUK HW13710 transmission ,10 forward and 2 reverse

Brake system



Service brake

Dual circuit compressed air brake

Parking Brake

(emergency brake)

Spring energy, compressed

Steering system

Model

ZF8198 Steering Gear Box ,hydraulic steering with power assistance.

(Left hand driving)

Front axle

SINOTRUK 7000kg Front Axle,new 7-ton front axles of equipped with drum brakes.

Rear axle

SINOTRUK ST16 Double Reduction Drive Axle, Pressed axle housing,

central single reduction with planetary wheel reduction and

with differential locks between wheels and axles,ratio:4.42;strengthened design,

loading capacity and reliability have been increased greatly.

Wheels &Tire

Rims:9.0-22.5 10 hole-steel ;Tyres:12R22.5tubeless tyre with 1 Spare tire.

Electrical system

Electrics Operating voltage

24V,negative grounded

Starter

24V,7.5 Kw

Alternator

3-phase,28V,1500 W

Batteries

2x12 V,165 Ah

horn,headlamps,fog lights,brake lights,indicators and reverse light.

Oil Tank

Square type-400L Aluminum alloy fuel tank

Packing

Nude Pack.The packing of the commodity shall be in accordance with the export standard packing of the manufacturer,be suitable for long distance transportation of ocean and inland. The Seller shall be take measures against moisture,shocks and rust according to the special needs of the commodity.

The manufacturer reserves the right of technical alteration /change for better improvement without prior notice

新重汽 37

1、Circular cross section sewage;non-blocking air duct;even pressure;strong absorption power;better rigidity;complete discharging.

2Suction Function:Rear cover of the sewage tat is equipped with suction pipe,which can clean the region where the vehicle can not perform the operation.

3Multi-function:Road surface sweeping,washing,high-pressure washing;road curb washing;garbage-sewage collecting;designing and sewage suction;dust suppression by water spraying etc.

4Working equipment layout:Middle vertical sweeping brush+middle wide suction nozzle(inner high-pressure side spraying rod).The sweeping area is wider,the cleaning rate is higher.

5The"V"type arrangement of the left & right spray rods and the suction nozzle is automatically program controlled. The spray rod can avoid obstacles automatically and reset.

6International and domestic famous brand high-pressure pump,low-pressure pump,hydraulic valve unit,centrifugal fan,vice-engine etc.core parts are reliable with long service life.

7Equipped with full tank alarm device and self-cleaning device.When the alarm dtarts,the tank automatically stop working to prevent the sewage flowing out and secondary pollution;the self-cleaning device can clean the interior compartment of the tank to ensure discharging the garbage completely.

8Clear water tank with low water level sensor alarm system will automatically alarm and stop working when water shortage appears,preventing damage of water pump.

9Advanced CAN-Bus technology,PLC Intelligent one button operation;reliable and convenient.

10The working lamp is installed on the washing brushes,to make the vehicle work at night more convenient.
