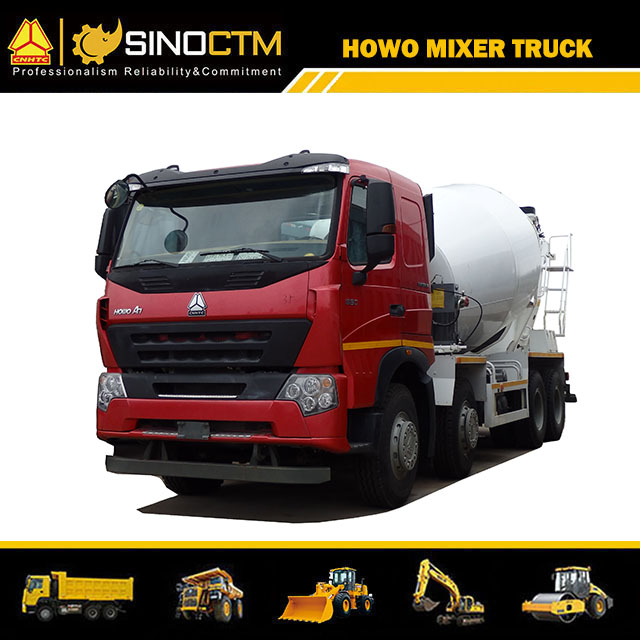

SINOTRUK HOWO-A7 8X4 Concrete Mixer Truck
Model: ZZ1317N3267N1
Cab:A7-W Lengthen cab,with one sleeper,with A/C.
Engine:WD615.47; 371hp; Euro II
Transmission: HW19710,10 forward and 2 reverse.
Steering: ZF8118（Left hand driving）
Axles: Front:2*9000kg & Rear:2*16000
Tire: 12.00R20 radial tyre
Cubage：12m³,Pump(ARK PV089MHR)+Motor(ARK MF089V)+Reducer(TOP P75S)
| Quantity: | |
|---|---|
ZZ1317N3267N1
SINOTRUK HOWO
1. HOWO trucks with the engine are all equipped with heating and air conditioning which are electrically operated and automatically control temperature. This is the configuration for high-end sedan.
2. The sleeper of our product is designed according to the body shape of European and American people. The width reaches 600mm. The aluminum alloy frame has light weight and good rigidity. A wire mesh structure is internally installed. Compared with other products in the domestic market, our product can more effectively relieve fatigue.
Comfort: Sinotruk Howo brand cab, the design is more fashion and beautiful, make the driver more comfortable when driving.
Security: Imbedding in one time makes the main beam stronger. High strength makes it more safe and reliable.
Effective: Save more oil, attendance is high. And the mixing volume of tank is huge, with the huge horse power engine, can be adapted into all kinds of construction field.
SINOTRUK HOWO-A7 8x4 CONCRETE MIXER TRUCK SPECIFICATIONS | ||
Truck Model | ZZ1317N3267N1(Left Hand Drive ) | |
Truck Brand | SINOTRUK-HOWO | |
Dimension (LxWxH) (unloaded)mm | 10900×2550×3950 | |
Tank volume(m³) | Pump(ARK PV089MHR)+Motor(ARK MF089V)+Reducer(TOP P75S) Mixing Volume(M³)：12m³ Stuffing Volume(%)：63.75 Feeding Speed(M³/min):≥3 Discharging Speed(M³/min):≤2 Discharge Residue(%):≤0.2 Slump Scope(mm):50～220 Drum Speed( Min)：0～16 Water supply Syste：400L/Pneumatic Drum Material：Head 8mm;Body 5mm;Blade:3mm、4mm、5m | |
Approaching angle/ Departure angel (°) | 20/13 | |
Overhang (front/rear) (mm) | 1540/2735 | |
Wheel base (mm) | 1800+3225+1350 | |
Max. Driving speed (km/h) | 95 | |
Front axle loading capacity (kg) | 2*9000 | |
Rear axle loading capacity(kg) | 2*16000 | |
Curb weight (kg) | 15980 | |
Gross vehicle weight | 41000 | |
Cab Model | SINOTRUK A7-W Lengthen cab,single bunk,new type seat,adjustable steering wheel,EURO new type heating & ventilating system,German VDO instruments,safety belts, exterior sun visor,stereo radio/cassette recorder,left driving,air conditioner | |
Engine Model | Model | WD615.47(EURO II),371hp,6-cylinder in line, 4-stroke, water-cooled, turbo-charged & inter-cooled, direct injection |
Rated Power(kw/rpm) | 273/2200 | |
Make SINOTRUCK (CNHTC), Euro II emission standard, Thermostat with 71℃ opening begin, Rigid fan | ||
Clutch | SINOTRUK Φ430 diaphragm-spring clutch,hydraulically operating with air assistance | |
Transmission | Model | SINOTRUK HW19710 transmission ,10 forward and 2 reverse |
Brake system
| Service brake | Dual circuit compressed air brake |
Parking Brake (emergency brake) | Spring energy, compressed | |
Steering system | Model | ZF8118 Steering Gear Box ,hydraulic steering with power assistance. (Left hand driving) Option：ZF8098 Steering Gear Box（Right hand driving） |
Front axle | SINOTRUK 2*9000kg Front Axle,new 2* 9-ton front axles of equipped with drum brakes. | |
Rear axle | SINOTRUK 2*16000 Heavy reduction drive axle,STR hub-reduction with differential locks between wheels and axles, enforced STR axle,ratio:4.8;The basic configuration of HOWO series construction vehicle can be used in such bad environment as bad road condition, heavy impact and overloading, which is the best choice for heavy construction vehicle customers. | |
Wheels &Tire | Rims:8.5-20 10 hole-steel ;Tyres:12.00R20 radial tyre with 1 Spare tire. Option:12R22.5 tubeless;315/80R22.5 tubeless;13R22.5 tubeless. | |
Electrical system | Electrics Operating voltage | 24V,negative grounded |
Starter | 24V,7.5 Kw | |
Alternator | 3-phase,28V,1500 W | |
Batteries | 2x12 V,165 Ah | |
horn,headlamps,fog lights,brake lights,indicators and reverse light。 | ||
Oil Tank | Square type-400L Aluminum alloy fuel tank | |
Packing | Nude Pack.The packing of the commodity shall be in accordance with the export standard packing of the manufacturer,be suitable for long distance transportation of ocean and inland. The Seller shall be take measures against moisture,shocks and rust according to the special needs of the commodity. | |
The manufacturer reserves the right of technical alteration /change for better improvement without prior notice | ||
Concreet mixer truck series
Our concrete mixing transporter has ten series, more than 60 varieties, best-selling throughout the country and more than 20 countries in the world. This product has more than 20 patents, which automatic centering of the four roller mechanism, not only overcame the generated the noise and vibration of tank when the high-speed rotation, and greatly improve the stability, security and reliability of the vehicle. Mixer blades manufactured by a large three-dimensional stamping molding, within the tank welding into two complex curved spiral, realized three-dimensional mixing, ensure uniform concrete mixing, no segregation, fast front-rear feeding and discharging speed, the residual amount of concrete is almost zero.

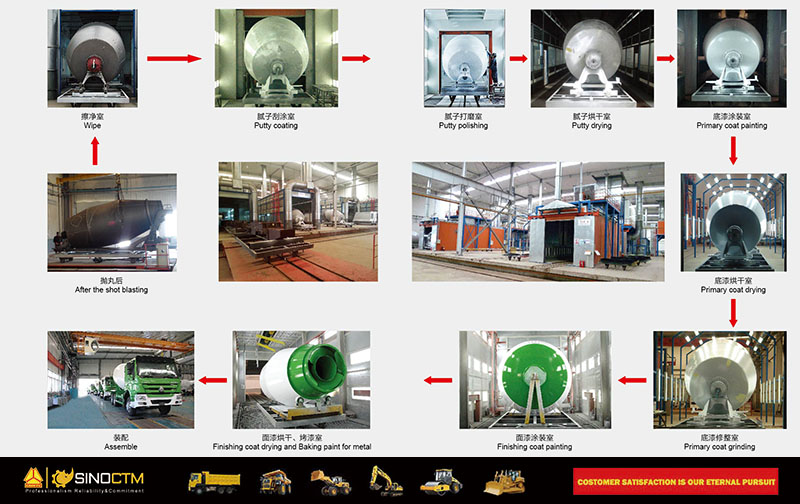

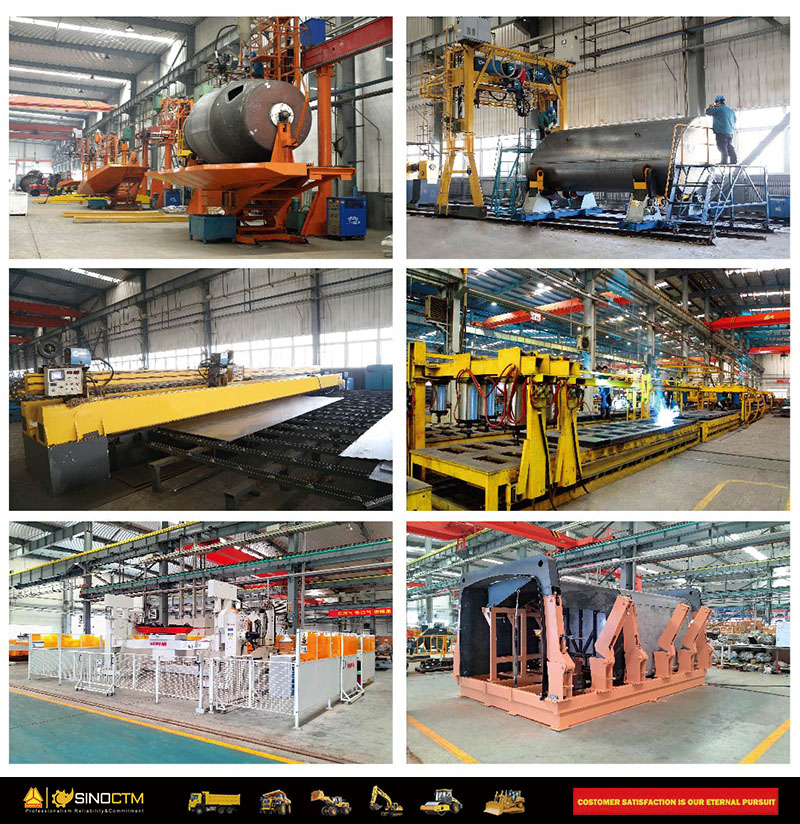

Our concrete mixing tank production line is composed of 26 sets of large tooling and equipment, adopted a number of advanced technologies. Through the steel sheet blanking, mould pressing blade, drum, plastic, automatic assembling, welding and so on more than ten working procedure to complete the manufacture of tanks. This production line can produce 10 kinds of specifications of the concrete mixing truck tanks volume. The technical level in the domestic leading position.
Our concrete mixing truck compact structure, rational layout, beautiful shape, advanced technology, praised and loved by foreign users.
