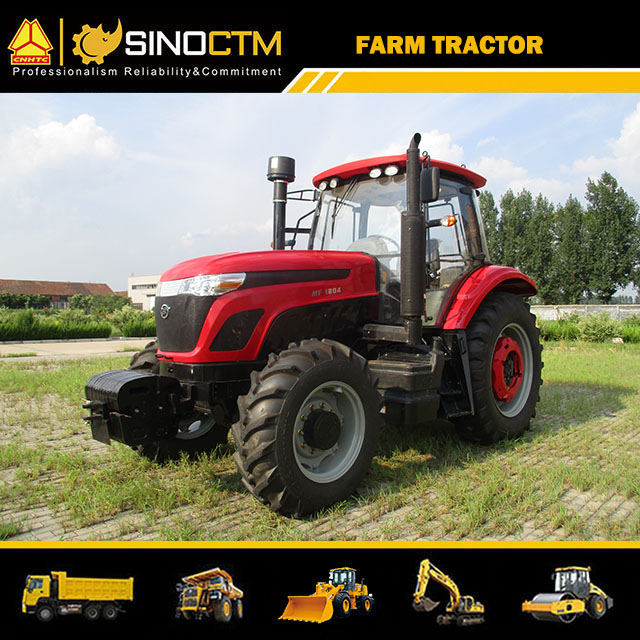

PH1404 Tractor
Min. operating weight:6430kg
Engine Model: WP6T140E22
Gross Power:103/2200 kw/rpm
| Quantity: | |
|---|---|
PH1404
WUZHENG
SINOCTM is located in Ji′Nan city, Shandong province, SINOCTM aims to provide the project solutions with best cost performance to customers from China and abroad. Our main business are construction solutions consultancy, equipments supply, technical instruction, parts supply, service & training, logistic support and etc, providing the steward type service.
We cooperate with SINOTRUK, FOTON, SDLG, XCMG, Liugong, Shantui, Sany, Zoomlion, Hongda and other premium brands to provide tailored project solutions to your specific needs. We can help you to avoid long-time communication with different suppliers, which will save you time and cost. As to after market, with many years′ experience in the industry and long-term partnership with the suppliers, we do provide timely after market with lower cost and higher availability.
PH1404 TRACTOR SPECIFICATIONS | ||
Drive Type | 4×4 | |
Engine | ||
Engine Model | WP6T140E22 | |
Engine Type | Vertical、6-cylinder、water-cooled、four-stroke、turbocharging | |
Max Torque(N·m)/Revolving Speed(rpm) | 665/2200 | |
Displacement(L) | 6.75 | |
Fuel Tank Capacity(L) | 320 | |
Engine Rated Power (kW/rpm) | 103 | |
Rated Operating Conditions Fuel Consumption Rate(g/kW·h) | 220 | |
Drive Train | ||
Clutch | Electric control wet multiple disc | |
Standard PTO speed(rpm) | 540（540E）/1000(1000E) | |
Gears | 40F+40R | |
Steering Type | Hydraulic steering | |
Gear Shift Mode | Main transmission synchronizer shift, auxiliary transmission power shift | |
Break System | ||
Service Brake | Multi-disc,wet disc | |
Parking Brake | Handle operation | |
Hydraulic System | ||
Hydraulic Output Flow(L/min) | 65 | |
Hydraulic Output Valve | 3 ways | |
Working Device | ||
Three-Point Suspension | postposition | |
Max.Lifting Capacity(kN） | ≥24.72 | |
Tillage Depth Adjustment | Draft/ position/draft and position/floating adjustable | |
General Parameter | ||
Overall Dimension(L×W×H)mm | 5520×2420×3170 | |
Wheelbase(mm) | 2880 | |
Min. Operating Weight(kg) | 6430 | |
Min. Ground Clearance(mm) | 300 | |
Min.Turning Radius(mm) | 7000 | |
Tire Size | 16.9-30/18.4-38 | |
Packing | Nude Pack.The packing of the commodity shall be in accordance with the export standard packing of the manufacturer,be suitable for long distance transportation of ocean and inland. The Seller shall be take measures against moisture,shocks and rust according to the special needs of the commodity. | |
PH series Renoman tractor is high-end product launched by our Agricultural Equipment; it has won national attention and favor of users with the whole machine extraordinary performance. Renoman is a series of large horsepower tractor, it adopts industry leading technology in order to meet your demand for high power tractors.
1,Renoman is equipped with advanced energy-saving Weichai Deutz, Germany Deutz diesel engine as supporting power, which has super torque and power reserve, thus reduces the demand for gear and fuel consumption;
2,Renoman tractor has 40+40 interval power shift gearbox, the user can complete forward and back commutation smoothly and fastly wothout stepping on the clutch, which brings more smooth and convenient operation, and meets all kinds of complex agronomic requirements;
3,Advanced electro-hydraulic control system brings greater lift capacity and more accurate tools regulation, reducing repeated driver operation and labor intensity.
Tractor Main Features and Advantages:
1.Equipped famous brand engine showing advanced capacity,low fuel consumption,high economic efficiency.
2. Streamlined appearance design, beautiful and generous.
3.Transmission Case adopt meshed shift and add the gearbox interlock device makes the operation more smoothly,reliable and easier.
4. Double action clutch with disc spring, perform steadily and easy to operate.
5. Fully hydraulic steering system greatly reduced driver's work strength.
6. Wet disc brake device, reliable brake performance.
7. Separate injection of hydraulic oil, reliable to operate.
8. The lifter with force and position adjustment, with reliable lift.
9. Tractor PTO:
PTO in Double speed : 540/760r/min Optional, For high working efficiency.
PTO shaft of 6 or 8 spline Optional, adaptable for agricultural equipment of all over the world.
10. Big Chassis and Heavy-duty Rear axle for Durable Strong machine.
11. Full series light, ROPS,Sunshade/Canopy, Fan/Heater/Air-conditioned cabin are all available, for more comfortable driving environment.
