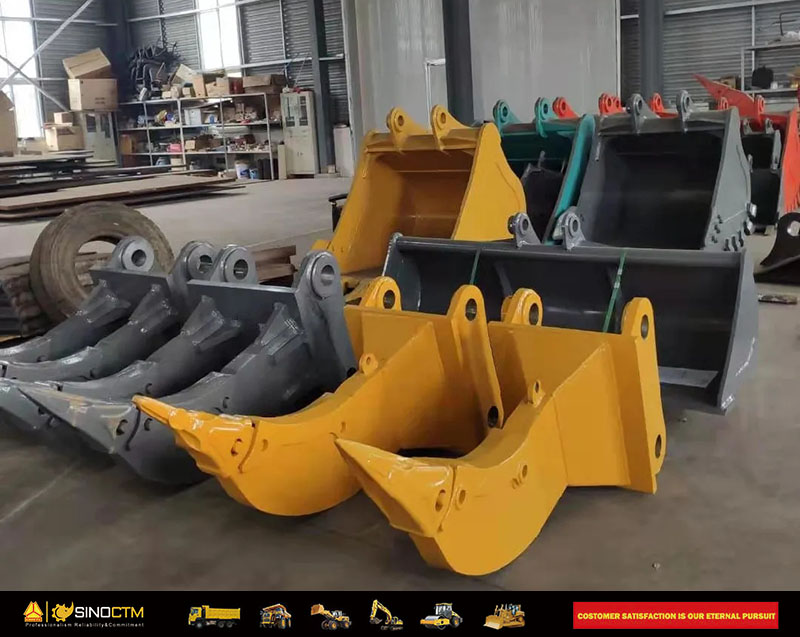

Ripper
XCMG
Suit for (t) | Thickness of shank (mm) | Approx Tooth Tip Radius (r) | Weight (kg) |
1.5-5 ton | 50 | 490 | 72 |
5-9 ton | 55 | 950 | 180 |
9-16 ton | 65 | 1150 | 350 |
16-23 ton | 80 | 1250 | 530 |
23-30 ton | 90 | 1380 | 580 |
23-30 ton | 90 | 1450 | 730 |
30-40 ton | 100 | 1450 | 900 |
40-49 ton | 100 | 1580 | 1010 |
50-64 ton | 120 | custom-made | custom-made |
65-90 ton | 120 | custom-made | custom-made |
The ripper has the function of breaking and loosening.
It is used to excavate cracked rock, crush frozen soil, and dig asphalt pavement.
It is suitable for crushing and splitting hard soil, sub-hard rock and weathered fossils, so as to facilitate excavation and loading operations with buckets.
Our excavator ripper for break up frozen ground, hard soil, rock, ice, asphalt or pavement with ease. The body of the ripper is made from 1 piece of solid steel, and comes with a high quality forged metal tooth that can be easily be replaced when necessary.
Heavy-duty teeth:Fitted heavy-duty replaceable tooth to ensure the best results and wear resistance
Nose protector:Ripper add a blade to protector ripper to prevent fracture, broken.
Wear resistant plate:NM400 material used in this plate to ensure the using life
Reinforce plate:Reinforced the whole structure, prevent the ripper body separate with ear plate
