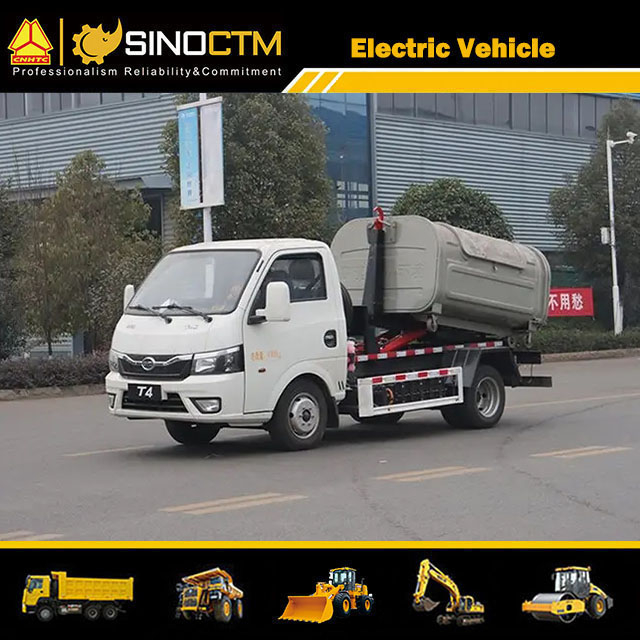

BYD Electric Hook Lift Garbage Truck 2.5 CBM

BYD Electric Hook Lift Garbage Truck 2.5 CBM

Model:BYD10411N7BEVD5

Motor Type:Permanent magnet synchronous motor

Rated voltage of battery pack: 289V

Battery power: 63KWH

Max Power:80kw/rpm

Battery:Lithium Iron Phosphate Battery

Installed motor rated power: 5.5KW

Battery consumption per hour: 3KWH

Recommended charging pile power: 120KW

Charging Time(Quick/Slow):0.6 h

Driving range:280km

Max Speed:90km/h

Tire:185R15LT 8PR with one spare tire.

L*W*H:5170×1920×2040mm

Curb weight:2440kg

Availability:
Quantity:
  • BYD10411N7BEVD5

  • BYD

Product Description

ELECTRIC HOOK LIFT GARBAGE TRUCK SPECIFICATION

Truck Model

BYD10411N7BEVD5(Left Hand Drive )

Truck Brand

BYD

Dimension (LxWxH) (unloaded)mm

5170×1920×2040

Approaching angle/ Departure angel (°)

19/17

Overhang (front/rear) (mm)

1180/1290

Wheel base (mm)

2700

Max. Driving speed (km/h)

90

Front axle loading capacity (kg)

1450

Rear axle loading capacity(kg)

2850

Curb weight (kg)

2440

Gross vehicle weight (kg)

4300

Tire

185R15LT 8PR with one spare tire.

Effective volume of dustbin(m³)

2.5

Packing

Nude Pack.The packing of the commodity shall be in accordance with the export standard packing of the manufacturer,be suitable for long distance transportation of ocean and inland. The Seller shall be take measures against moisture,shocks and rust according to the special needs of the commodity.

The manufacturer reserves the right of technical alteration /change for better improvement without prior notice

新电动汽车组合 4

Electric hook arm garbage truck Upper assembly road: the Garbage Tank is made of carbon steel plate, the interior is made of anti-rust, hydraulic pump, multi-way valve, the car can be unloaded, the cab can be operated, and other factories are standard. A set of pull arm hook loading system is adopted, and the pull arm hook swings through the expansion and contraction of the oil cylinder to complete the hook loading, hook unloading and unloading of the sealed garbage bin.
